Spelsberg RKi 4/12 SL-12x4²
HousingProduct details

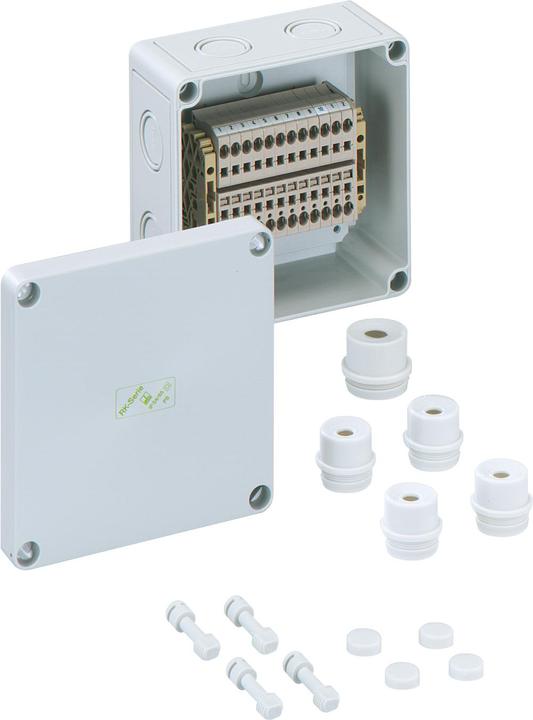

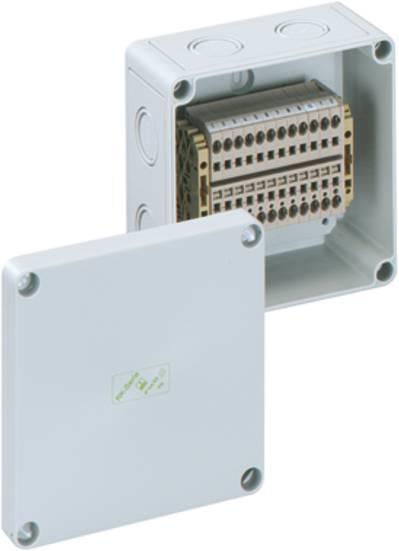

The RKi 4/12 SL-12x4 terminal housing from Spelsberg is a robust and versatile solution for the secure accommodation of electrical connections. It provides space for up to 12 connection terminals with a maximum conductor cross-section of 4 mm². The housing is made of high-quality, halogen-free plastic and features a material thickness of 3 mm. With an IP66 protection rating, it is suitable for both indoor and protected outdoor use, making it ideal for industrial applications. The installation is surface-mounted, and the housing is equipped with a screwed cover that offers a sealable function. The operating temperature ranges from -25 to 40 °C, ensuring high flexibility in various environments. Additionally, the housing is equipped with internal mounting points that facilitate easy installation.
- IP66 protection rating for high weather resistance
- Space for 12 tool-free terminals of type Weidmüller ZDU 4
- Halogen-free material for increased safety
- Operating temperature from -25 to 40 °C
- Sealable cover fastening for additional security.
Electrical engineering accessory type | Housing |
Item number | 22933626 |
Manufacturer | Spelsberg |
Category | Electronics supplies + Casing |
Manufacturer no. | 63001201 |
Release date | 24.10.2022 |
Colour | Grey |
Compatible hardware | Various |
Electrical engineering accessory type | Housing |
Manufacturer Type | 12 SL-12x4, RKi 4 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1x |
Scope of delivery | 1 Mounting spigot IP54 M25 Sealing range 9-18, 5mm, Equipped with 12 screwless terminals 4mm² (type Weidmüller ZDU 4)Dimensions: 130 x 130 x 75mmAccessories included: 4 mounting spigots IP54 M20 sealing range 8-13, For installations in industrial environments and protected outdoor areas, Internal fixing points, Nominal cross-section 4mm², Polycarbonate, Terminal block housing, Ui=400V AC, with protection class IP54/IP66 |
Length | 130 mm |
Width | 75 mm |
Height | 75 mm |
