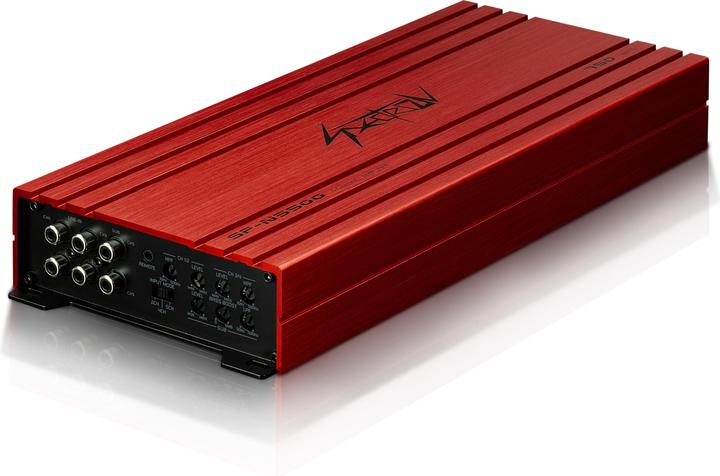

Spectron SP-N5500 Class-D Amplifier 4x75 1x200 W

Spectron is the guarantee of solid quality and reliable technology in the entry-level segment. The latest Class-D technology and practical features come together in the new compact amplifiers of the fully digital N-Series. High power in a small space with maximum reliability – Spectron knows what matters. And despite being positioned in the budget segment, the aesthetics of these amps are not overlooked. The attractive heat sink design with its clear lines and recessed side panels looks elegant and simply invites you to want more.

Power features include 12 dB/oct. active crossovers with variable high-pass, low-pass, and band-pass filters, as well as a continuously adjustable input sensitivity.

Technical specifications:

• Class-D amplifier
• 80 W x 4 + 200 W x 1 at 4 Ohm (< 1 % THD / 14.4 V)
• 115 W x 4 + 300 W x 1 at 2 Ohm (< 1 % THD / 14.4 V)
• 200 W x 2 + n.a. at 4 Ohm (< 1 % THD / 14.4 V)
• Frequency response: 10 Hz - 45 kHz
• Damping factor at 4 Ohm: > 100
• Signal-to-noise ratio: > 90 dB
• Low-pass filter 10 Hz - 500 Hz (12 dB/oct.)
• High-pass filter 10 Hz - 500 Hz (12 dB/oct.)
• Bass Boost Control (0 - 12 dB)
• Bass Level remote control
• Extensive protection circuits

Dimensions W x H x D: 325 x 45 x 135 mm.
