somfy Smoove Uno IN 1800533

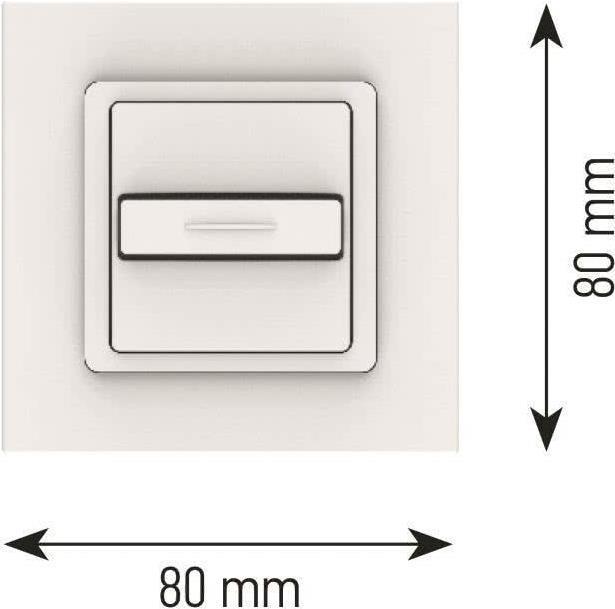

The wall control unit features an attractive design that allows for comfortable control of wired drives with 230 V, such as roller shutters or awnings. It is available as either a switch or a push button and offers up, down, and stop functions. Thanks to a 50 x 50 mm adapter frame, the control unit can be integrated into all common switch programs and is characterized by easy wall mounting using a mounting plate, as well as tool-free wiring via clamp terminals. It is suitable for flush-mounted boxes with a depth of at least 50 mm. It is important to note that the delivery includes not only the mounting plate for switch programs from other manufacturers but also an intermediate frame. Additionally, a 50 x 50 adapter and frame from the switch manufacturer are required. A Somfy frame can also be installed, but with slightly less precision. Included in the delivery is a single switch with a mounting plate. The technical specifications include an operating voltage of 230 V, a maximum switching current of 6 A, an operating temperature range of -5 degrees to 45 degrees, protection class IP20, and dimensions of 50 x 50 x 42 mm.
