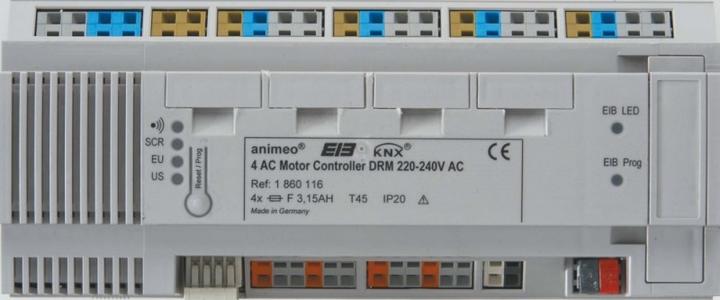

somfy 1860116 Motor controller animeo EIB

For roller shutters, vertical awnings, external blinds, and windows. For individual control of 4x 230 V AC drives. With Somfy animeo KNX RTS radio receiver and animeo KNX EnOcean receiver, RTS or EnOcean signals can be routed to the KNX bus. Designed for DIN rail installation (12TE). Can be expanded at any time with the Somfy animeo RTS or EnOcean radio module. Position feedback from the connected drives during operation and when reaching the upper or lower limit. Two different safety positions can be freely defined for each motor output. Safety position upon restoration of mains voltage can be freely defined. Automatic cascading of outputs upon restoration of mains voltage and bus safety functions to minimize power spikes. Mixed systems with different drive types are possible, e.g., for blinds, screens, and windows. Dimensions (W x H x D): 210 x 90 x 61 mm. Protection class: IP 20. Protection type: II. Operating voltage: 230 V AC. Operating temperature: 0 °C to 45 °C. Output voltage: 230 V AC. Max. power consumption: max. 3.15 A per output.
