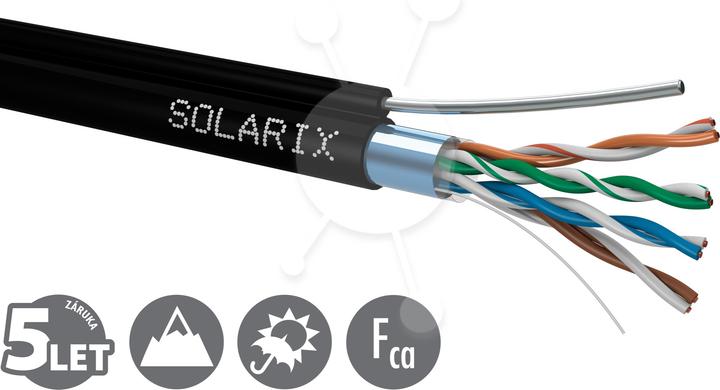

Solarix Venk.inst.kabel CAT5E FTP PE samonos.

The Solarix installation cable designated SXKD-5E-FTP-PE-SAM is a reliable, outdoor-rated shielded cable of category 5E, designed for the operation of Ethernet protocols, including 2.5GBASE-T and 5GBASE-T. The cable's construction is F/UTP, and it is equipped with a steel support wire in a separate insulation, allowing this cable to be used as a self-supporting cable over distances of up to 70 meters. The jacket type is UV-resistant PE with a fire reaction class of Fca. The conductors of the cable are made of high-quality copper wire with a copper purity of 99.97%. The cable easily meets the requirements of international standards ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D. Like all other Solarix cables, the SXKD-5E-FTP-PE-SAM cable is marked in one-meter increments from 0 to 305 meters. The cable is delivered on a high-strength wooden spool, which includes all necessary product information, including barcodes, batch number, description, and key technical parameters. To secure this cable, you can use the anchor AC35L.

Technical Parameters:
Category: CAT5E
Supported Protocols: 2.5/5GBASE-T and lower
Shielding: Foil around all 4 pairs
Bandwidth: 100 MHz
Conductor Type and Size: Copper wire 0.50 mm ± 0.005 mm
Insulation and Diameter of Insulated Conductor: HDPE 1.0 mm
Fire Reaction Class, Jacket Type: Fca, PE
Jacket Color: Black RAL 9005
Cable Diameter: 6.4 mm + 2.6 mm
Weight: 50.5 kg/km
NVP: 68%
Signal Propagation Time: 535 ns/100 m
Signal Delay Variation: Less than 45 ns/100 m
Storage Temperature: -20 °C to 70 °C
Operating Temperature: -20 °C to 70 °C
Installation Temperature: 0 °C to 50 °C
Packaging: 305 m, wooden spool
Packaging Dimensions (Diameter x Height): 370 mm x 320 mm
Number of Packages per Pallet: 36 spools (large pallet), 27 spools (small pallet).
