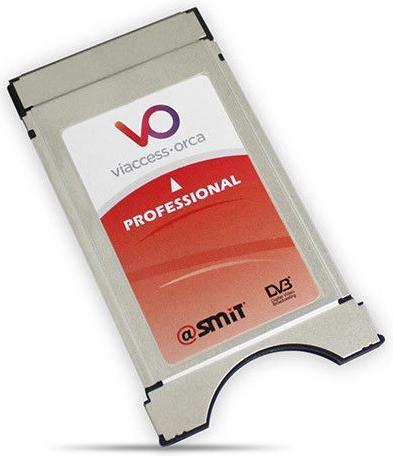

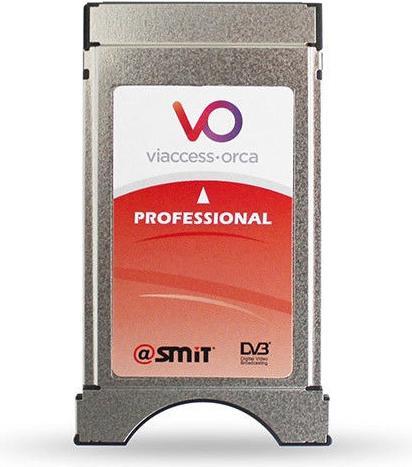

smiT Viaccess Professional CAM CI Module DVB 4 Channels Service

It differs from the SMIT Viaccess CAM in that the Pro version can decode up to 20 streams simultaneously (approximately 4-8 TV channels, assuming the devices and channels support this).

Official Conax Professional Module features an ASIC chip with proprietary intellectual property rights, an embedded 32-bit CPU (ARM7TDMI), and advanced 0.18-micron technology. It includes an advanced language development environment that supports the subsequent development of value-added services.

Descrambling capabilities support common descrambling algorithms used in Europe. The module has a DVB-CI interface that is compatible with DVB-CI/PCMCIA and a smart card interface that complies with ISO7816.

Specifications:

• Dimensions: PCMCIA type II
• Interface protocols of the host: Fully compliant with DVB-CI Profile 1 protocol
• External interface of IC card: Built-in SmartCard reader, compliant with ISO7816 protocol
• Operating system: Embedded Linux system with proprietary intellectual property rights
• Internal descrambler: Integrated universal DVB descrambler
• MPEG DEMUX: Multi-channel SECTION and PID filter configurable through software
• Enclosure structure: Latest compact structure and design for assembly
• Descramble 4 to 8 TV channels using one module.
