Silverstone Ml06
Mini-ITXOnly 1 item in stock at supplier
Product details

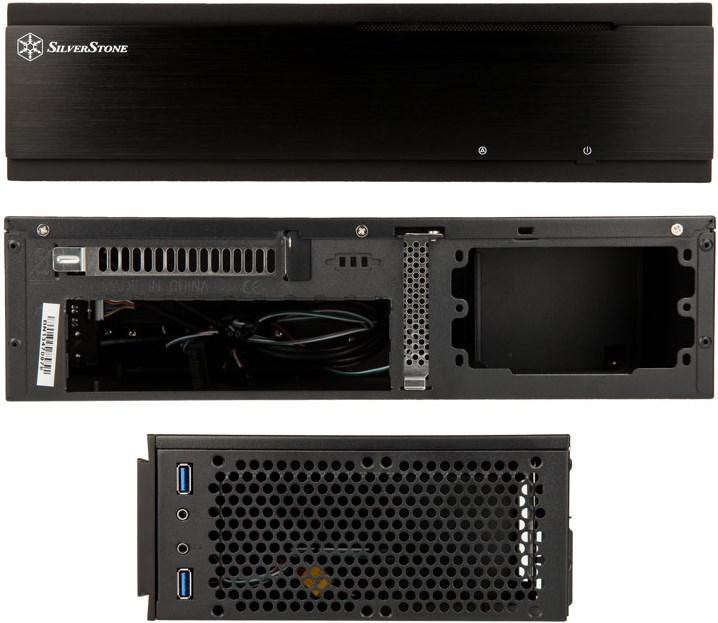

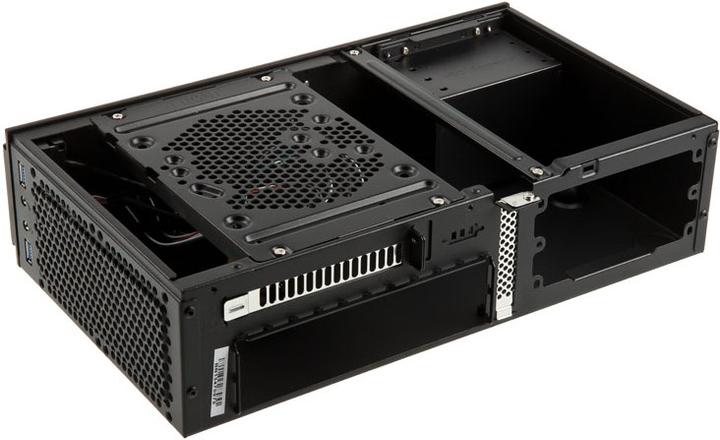

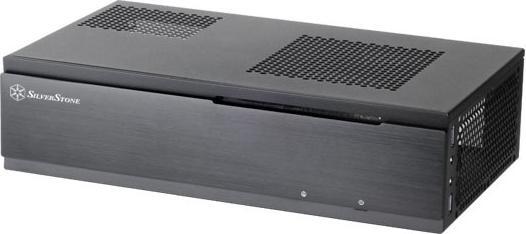

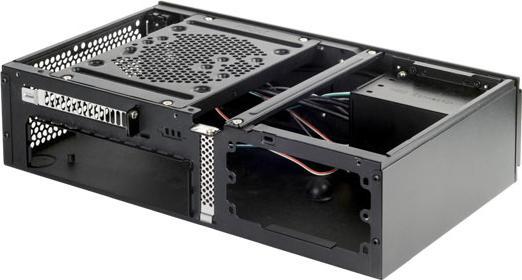

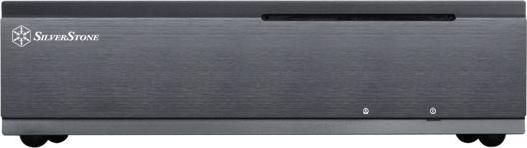

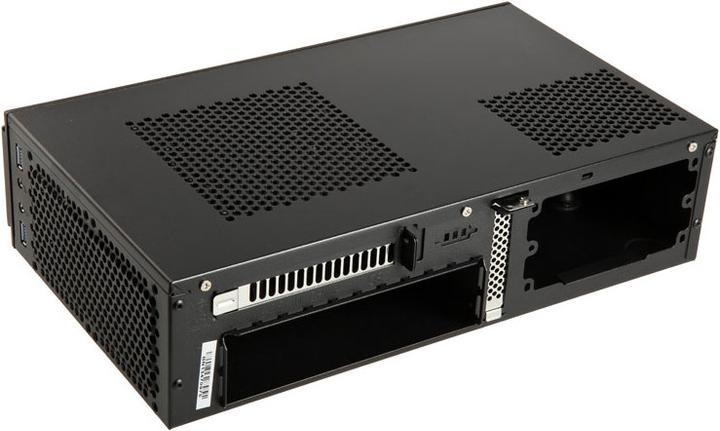

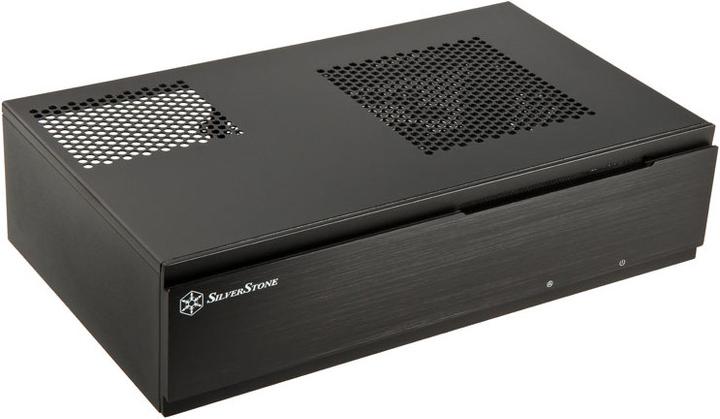

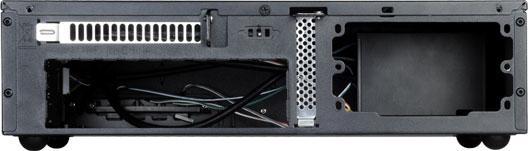

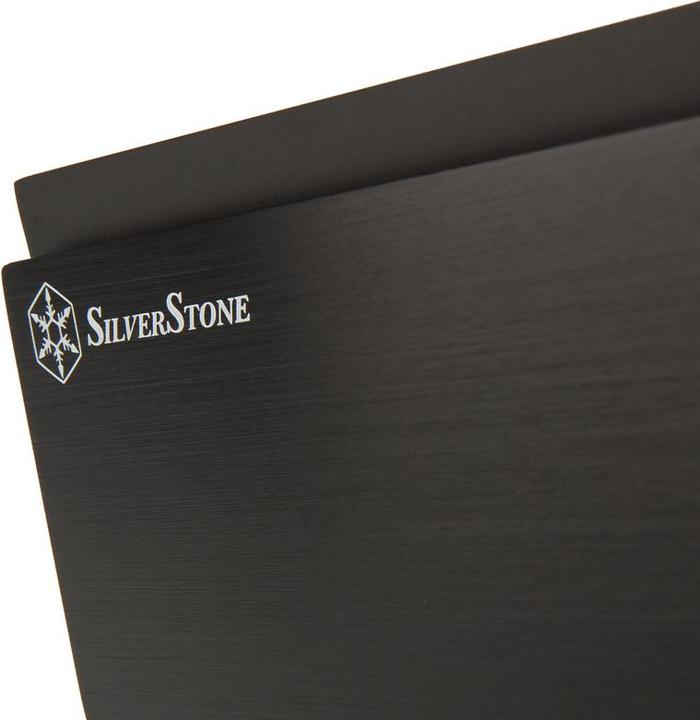

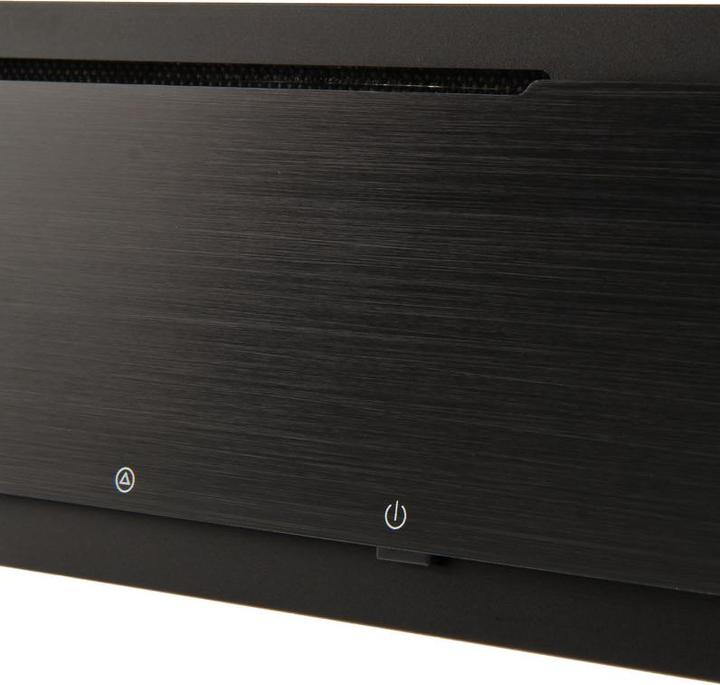

Based on the popular HTPC slim form factor, the Milo ML06 HTPC case is the smallest member of the Milo series to date, yet it can still be equipped with state-of-the-art components. With a volume of just 7 liters, which is half the volume of the Micro-ATX ML03, it accommodates a Mini-ITX motherboard, an SFX power supply, and up to four 2.5-inch hard drives. Thanks to the innovative 4-in-1 multifunction bracket, you can also install an optical slim drive, a 3.5-inch hard drive, two 2.5-inch drives, or a 120mm fan as needed. The unobtrusive, super-compact design is complemented by an attractive front panel made of brushed aluminum, which harmoniously integrates into any common home theater design, making the ML06 arguably the best HTPC case on the market.
PC case design | HTPC Case |
Max. length graphics card | 74 mm |

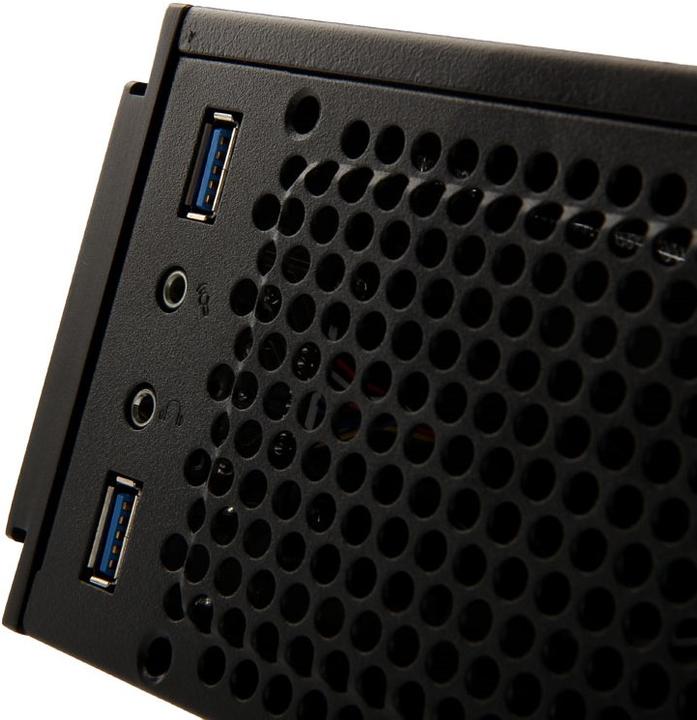

Front connectors | 2x USB 3.0, Headphones, Microphone, Power button, Reset button |
Max. height CPU cooler | 70 mm |
Documents | |
Item number | 3527656 |
Manufacturer | Silverstone |
Category | PC case |
Manufacturer no. | SST-ML06B USB 3.0 |
Release date | 3.3.2015 |
External links |
Colour | Black |
Exact colour description | Black |
Material group | Metal, Plastic |
Material | Aluminium, Steel |
PC case design | HTPC Case |
Form factor | Mini-ITX |
Number of 3.5" drive slots (external) | 1 x |
"Number of 2.5""/3.5"" combination slots" | 4 x |
"Number of 2.5"" drive slots" | 4 x |
Number of expansion card slots | 1 x |
Max. length graphics card | 74 mm |
Max. height CPU cooler | 70 mm |
Max length of power supply | 140 mm |
Front connectors | 2x USB 3.0, Headphones, Microphone, Power button, Reset button |
Number of fans | 0 x |
Number of fan slots | 3 x |
Fan location | Aspect, Rear side |
Radiator locations | Aspect |
Fans included | Optional fan |
Fan mount locations | 2x 80mm |
Radiator mount locations | No mounting possible |
Fan mount locations | 1x 120mm |
Fans included | Optional fan |
Fan mount locations | 1x 120mm |
Radiator mount locations | No mounting possible |
Fans included | 2x 80mm |
Fan mount locations | 2x 80mm |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Without power supply |
Height | 9.90 cm |
Length | 20.50 cm |
Width | 35 cm |
Weight | 2.40 kg |
Length | 41 cm |
Width | 27 cm |
Height | 16 cm |
Weight | 2.94 kg |
