Siemens Ultrasonic sensor

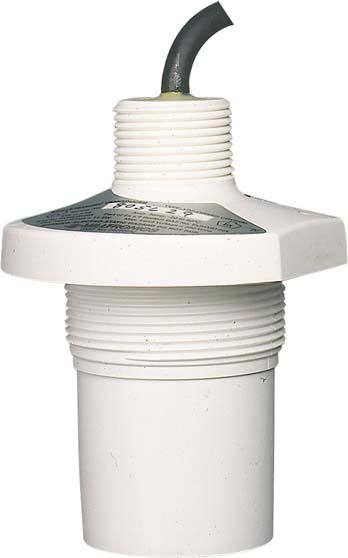

Siemens Dig.Industr. Ultrasonic Sensor 7ML1100-0BA20

Manufacturer: Siemens Dig.Industr.
Designation: Ultrasonic Sensor 10m
Type: 7ML1100-0BA20
Analog output configuration: other
Electrical connection type: plug connection
Switch output configuration: other
Switch function configuration: other
Width of the sensor: 82 mm
Height of the sensor: 119 mm
Diameter of the sensor: 82 mm
Adjustment method: other
Explosion protection category for gas: other
Explosion protection category for dust: other
Housing design: special design
Interface standard: other
Ambient temperature: -20..60 °C
Voltage type: other
Synchronization possible: no
Material of the sensor's active area: other
Material of the housing: other
Material of the cable sheath: other

The ST-H ultrasonic sensors utilize ultrasonic technology for level measurement in storage tanks containing chemicals and containers with liquids. The slim design of the ST-H allows for installation over a 2" (50.8 mm) standpipe. When properly installed, it is completely shielded from the process and can be used even in challenging, corrosive environments. During operation, the ultrasonic sensor emits acoustic pulses in a narrow sound cone. The transmission axis is perpendicular to the sensor's emitting surface. The transducer measures the time taken between sending the pulse and receiving the echo, calculating the distance from the sensor to the medium. Changes in sound speed due to temperature fluctuations within the measurement range are automatically compensated for by the integrated temperature sensor.
