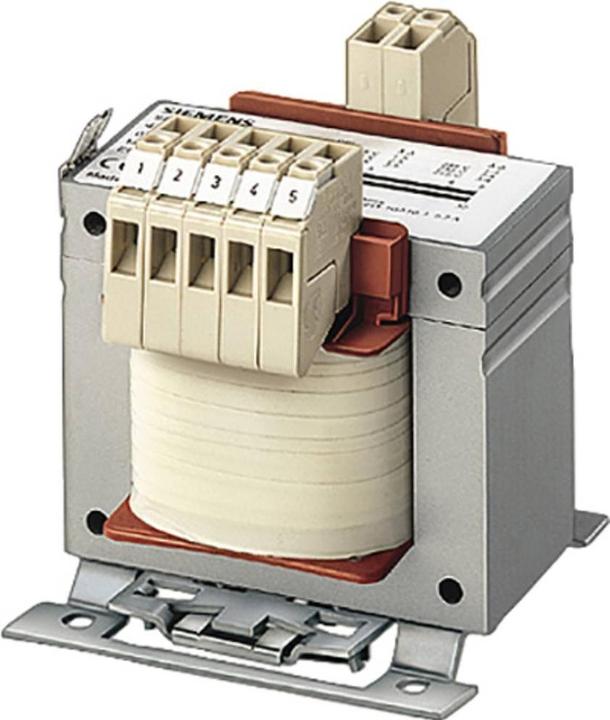

Siemens Transformer

Siemens digital industrial transformer 1-Ph. 4AM4642-5CT10-0FA0

Manufacturer: Siemens Digital Industries
Designation: Transformer 1-Ph. 0.4/1.44 Upri=440V
Type: 4AM4642-5CT10-0FA0
Designed as safety transformer: No
Designed as isolating transformer: No
Designed as economy transformer: No

Primary voltage 1: 462 V
Primary voltage 2: 440 V
Primary voltage 3: 418 V
Primary voltage 4: 0 V
Primary voltage 5: 0 V
Primary voltage 6: 0 V
Primary voltage 7: 0 V
Primary voltage 8: 0 V
Primary voltage 9: 0 V
Primary voltage 10: 0 V

Secondary voltage 1: 230 V
Secondary voltage 2: 0 V
Secondary voltage 3: 0 V
Secondary voltage 4: 0 V
Secondary voltage 5: 0 V
Secondary voltage 6: 0 V
Secondary voltage 7: 0 V
Secondary voltage 8: 0 V
Secondary voltage 9: 0 V
Secondary voltage 10: 0 V

Rated apparent power: 400 VA
Insulation class to IEC 85: B
Short-circuit proof: No
Relative short-circuit voltage uk: 4.4 %

Width: 122 mm
Height: 121 mm
Depth: 114 mm
Protection class (IP): IP00
Toroidal core: No
Suitable for PCB mounting: No
Suitable for series mounting: No
Conductor material: Other

The 4AM transformers combine all the features of single-phase safety, isolating, control, and mains transformers. This allows you to master any application with flying colours. The control transformers are also characterised by their short-time performance.
