Siemens Temperature transmitter

Siemens Digital Industrial Temperature Transmitter 7NG3032-0JN00

Manufacturer: Siemens Digital Industrial
Designation: Temperature Transmitter
Type: 7NG3032-0JN00
Power Supply Type: Active
Rated Supply Voltage DC: 1.5..3.5 V
Number of Input Ranges 0 V ... 20 V: 1
Number of Input Ranges 4 mA ... 20 mA: 1
Number of Output Ranges 4 mA ... 20 mA: 1
Fault Alarm Output: Yes
Intrinsic Safety according to EN 60947-5-6 NAMUR: No
Galvanic Isolation between Inputs: Yes
Galvanic Isolation between Input and Output: No
Galvanic Isolation between Output to Output: No
Galvanic Isolation between Supply Voltage and all other Circuits: No
Height: 99 mm
Width: 22.5 mm
Depth: 114 mm
Load: 500 Ohm
Operating Temperature: 23 °C
Device Design: Built-in Device
Electrical Connection Type: Screw Connection
Mounting Type: Snap Fastening
Mounting Rail
Protection Class (IP): IP20

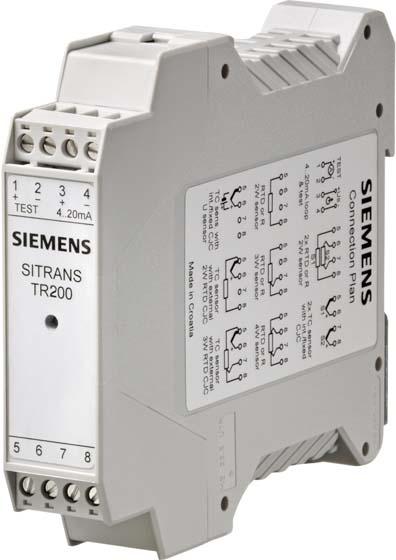

The SITRANS TR200 transmitter can be used in all industries. Its compact size allows for easy mounting on a DIN rail in enclosures on-site or in control cabinets. Due to its universal input stage, the following sensors and signal sources can be connected: Resistance Thermometers (2-, 3-, 4-wire connection), Thermocouples, Resistance Transmitters, and DC Sources. Temperature transmitter Sitrans TR200 for DIN rail mounting, 2-wire technology, 4 to 20 mA programmable with galvanic isolation and documentation on CD. EAN: 4019169841818.
