Siemens Switch disconnector 3-pole
Delivered between Thu, 16.4. and Wed, 22.4.
9 pieces in stock at supplier
9 pieces in stock at supplier
free shipping
Product details
Number of poles: 3
Current max: 32 A
Mounting type: Closed
Power: 11.5 kW
Protection class: IP65
Padlock option: Yes
Operating voltage: 690 V AC
Electrical phases: 3
Switching capacity: 6000 V

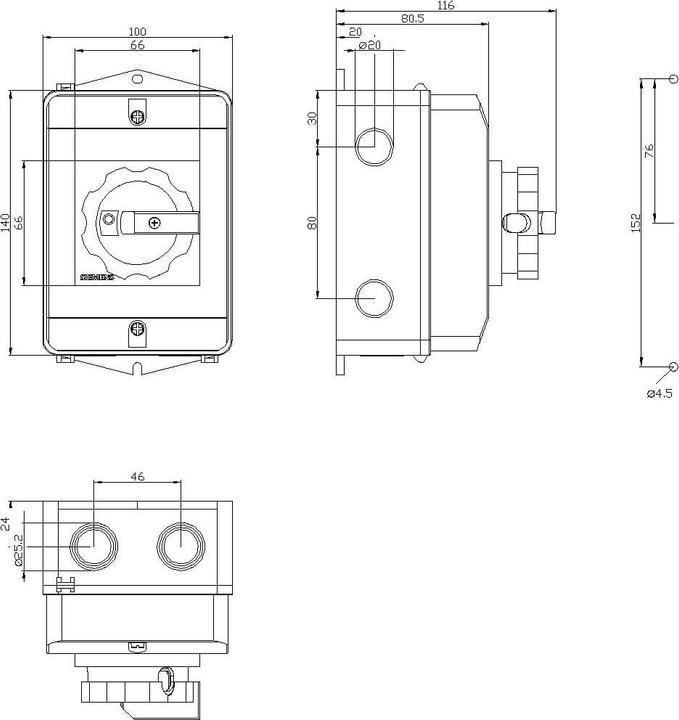

Length: 100 mm
Width: 140 mm
Depth: 81 mm
Connection type: Screw mounting

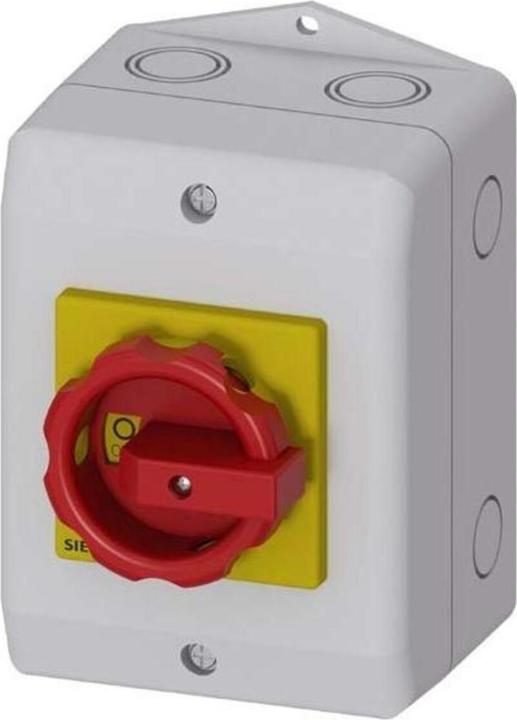

CE. SENTRON 3LD switch-disconnector, insulated enclosure. Main and emergency stop switch. Actuating element in black or red/yellow (emergency stop). Insulated enclosure, IP65 version with or without auxiliary contacts. Lockable in 0-position with a maximum of 3 padlocks. Metric screw connection.
Colour | Red, Yellow |
Switch + button type | Switch disconnector |
Mounting type | Built-in installation |
Width | 100 mm |
Item number | 9729539 |
Manufacturer | Siemens |
Category | Buttons + Switches |
Manufacturer no. | 3LD22640TB53 |
Release date | 24.9.2018 |
Colour | Red, Yellow |
Exact colour description | Red, Yellow |
Switch + button type | Switch disconnector |
Mounting type | Built-in installation |
Number of poles | 3x |
Nominal voltage | 690 V |
Nominal current | 32 A |
Max. Switching capacity | 11500 W |
Protection type (IP code) | IP65 |
Country of origin | Germany |
Manufacturer commitment | RE100, SBTi |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 2.28 |
Smart home | Not compatible |
Items per sales unit | 1 pcs. |
Length | 117 mm |
Width | 100 mm |
Height | 152 mm |
Specifications may include unverified machine translations.
