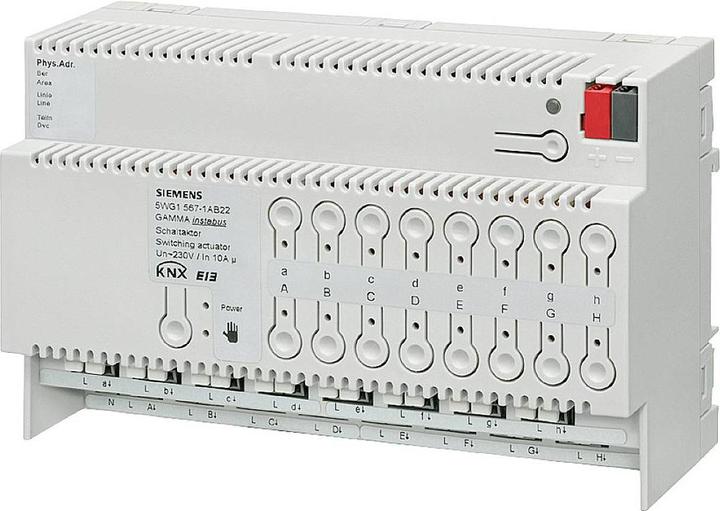

Siemens Switch actuator KNX REG 8TE 16Output 10A 2300W 5WG1567-1AB22
Switch actuatorProduct details
The KNX REG 8TE switching actuator from Siemens is a powerful device designed for controlling electrical loads in modern buildings. With 16 potential-free relay contacts and a contact rated current of 10 A, this switching actuator enables reliable and flexible control of various electrical devices. It is easily mounted on a DIN rail, facilitating installation in distribution cabinets. The actuator is designed for a maximum switching capacity of 2300 W, making it suitable for a wide range of applications in building automation. The IP20 protection rating ensures that the device is suitable for use in dry indoor environments. The switching actuator is not compatible with smart home systems and does not require an additional hub, making it a practical solution for controlling electrical loads.
- 16 potential-free relay contacts for flexible control options
- Maximum switching capacity of 2300 W for versatile applications
- Easy mounting on DIN rail for straightforward installation
- IP20 protection rating for use in dry indoor environments.
Actuator type | Switch actuator |
mounting style | Top-hat rail |
Items per sales unit | 1 x |
Item number | 32456079 |
Manufacturer | Siemens |
Category | Actuator |
Manufacturer no. | 5WG15671AB22 |
Release date | 16.1.2023 |
Actuator type | Switch actuator |
Max. Switching capacity | 2300 W |
rated current | 10 A |
Operating voltage | 230 V |
Number of switching outputs | 16 x |
mounting style | Top-hat rail |
Protection type (IP code) | IP20 |
Smart Home | Not compatible |
Requires Smart Home Hub | No |
Country of origin | Romania |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Width | 8 m |
