Siemens Star-Delta comb.

Delivered between Thu, 10.7. and Mon, 14.7.
Only 2 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

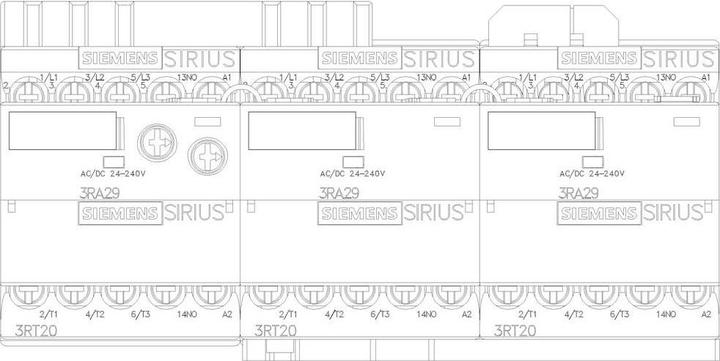

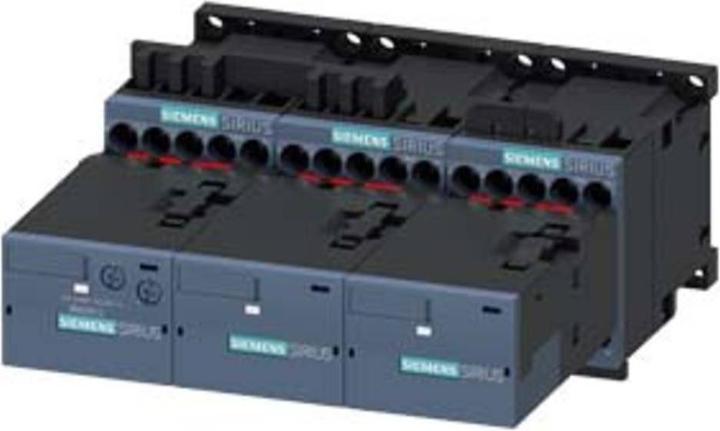

Siemens digital industrial star-delta combination S00 3RA2416-8XF31-1AP0

Manufacturer: Siemens Digital Industries
Designation: Star-delta combination S00 230 AC 7.5 kW/400 V 3p
Type: 3RA2416-8XF31-1AP0
Function: Star-delta contactor
Rated control supply voltage Us at AC 50 Hz: 230 V
Rated control supply voltage Us at AC 60 Hz: 230 V
Rated control supply voltage Us at DC: 0 V
Voltage type for operation: AC
Rated operational current Ie at AC-3, 400 V: 16 A
Rated operational power at AC-3, 400 V: 7.5 kW
Number of NO contacts as main contacts: 3
Connection type main circuit: Screw connection
Protection class (IP): IP20
Protection class (NEMA): Other

Further details:

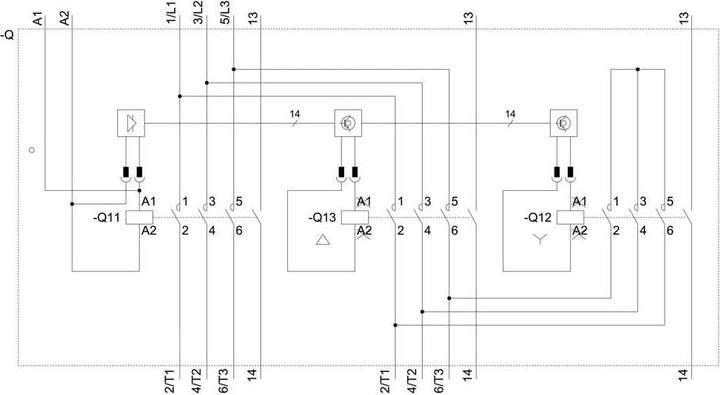

Star-delta combination AC-3, 7.5 kW/400 V, AC 230 V 50/60 Hz, 3-pole, size S00 screw connection, electrical and mechanical interlocking, 3 S integrated star-delta combination SIRIUS 3RA24 for gentle starting of three-phase asynchronous motors. The 3RA24 star-delta combination is a tested and factory-preassembled combination of three 3RT2 contactors that are already pre-wired and mechanically and electrically interlocked. The additionally included function module with integrated control logic and time setting replaces the complete wiring in the control circuit. They are climate-proof, approved worldwide (e.g. IEC and UL/CSA) and IE3/IE4 ready. The 3RA24 star-delta combinations are available with AC and DC actuation in sizes S00 to S3. They are offered in screw and spring-cage connection technology for mounting on top-hat rails or screw mounting. In addition, variants are available for connection to IO-Link or AS-Interface. The accessories of the 3RT2 contactors are uniform for all sizes and can also be used for the contactor combinations. The 3RA24 star-delta combinations replace the proven 3RA14 series. Simple, efficient, always up-to-date - the SIRIUS modular system.
EAN: 4011209838239.

Key specifications

Item number
20684941

General information

Manufacturer
Siemens
Category
Home automation
Manufacturer no.
3RA2416-8XF31-1AP0
Release date
27.4.2022

Home automation properties

Manufacturer Type
3ra2416-8xf31-1ap0

Installation

mounting style
Screws

Power supply

Power
7500 W
Power supply
Electrical connection

Origin

Country of origin
China

Sustainability

Manufacturer commitment
RE100SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution
