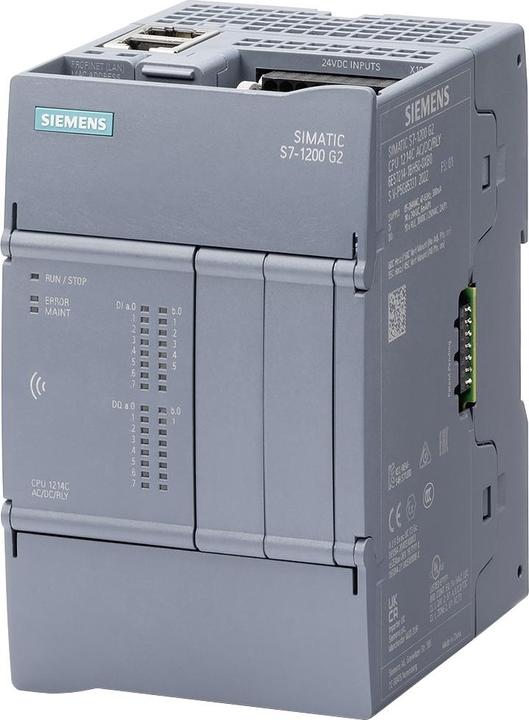

Siemens SIMATIC 6ES7214-1BH50-0XB0 S7-1200 G2 CPU 1214C AC/DC/Relais 14DI

SIMATIC S7-1200 G2: Compact CPU 1214C AC/DC/RLY, Power Supply: AC 85-264V AC at 47-63Hz, Onboard I/O: 14x DI DC 24V, 10 DO Relay 2A, Memory: Program 250 KB, Data: 750 KB, Retention: 20 KB. SIMATIC S7-1200 G2 Basic Controller - The Basic Controllers are the first choice for flexibly and efficiently solving automation tasks in the lower and medium power range. The central modules are scaled in their performance, available for different input voltages and with transistor or relay outputs. Safety variants are also available. In addition to the already integrated inputs and outputs, the compact CPUs can be expanded directly on the device or with a variety of signal and communication modules to precisely meet your requirements. HMI devices can also be connected via the integrated Ethernet interface. The CPU memory can be expanded via a memory card, and the PLC is programmed with the STEP 7 Basic software in the TIA Portal. The S7-1200 G2 offers various networking options through different communication standards with integrated functions such as PROFINET, providing maximum flexibility in network and topology setup. The application areas for the S7-1200 are very diverse due to its compact design, ranging from simple packaging machines to heating systems and even serving as a subordinate system in large plants. Compact design, modular structure, and integrated I/Os help save space in the control cabinet. The project planning software STEP 7 is integrated into the TIA Portal, utilizing a common data repository, a unified operating concept, and consistent communication services for all components of a system. This results in reduced project planning effort and faster commissioning.
