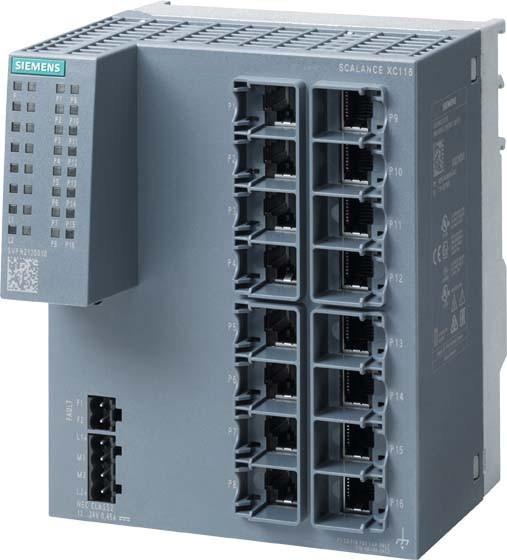

Siemens SIEM 6GK5116-0BA00-2AC2 SCALANCE XC116, 16x 10/100MBit/s RJ45 ports

Siemens Digital Industries Scalance XC116 6GK5116-0BA00-2AC2
Manufacturer: Siemens Digital Industries
Designation: Scalance XC116 16x 10/100 Mbit/s
Type: 6GK5116-0BA00-2AC2
Ethernet: yes
Number of 10/100 Mbps RJ45 ports: 16
Mounting type: DIN rail
Layer 2: yes
Layer 3: no
Manageable: no
Protection class (IP): IP20
Height: 147 mm
Width: 120 mm
Depth: 125 mm

SCALANCE XC116, unmanaged IE switch, 16x 10/100 Mbit/s RJ45 ports, LED diagnostics, fault relay contact with set button, redundant power supply. Manual available for download. SCALANCE XC116 Unmanaged Compact Switch, 16x 10/100 Mbit/s RJ45 for simple machine networking. Suitable for use in explosion-protected areas, in series machine construction, and in the process industry. Space-saving installation in the control cabinet due to compact design in S7-1500 format and mounting option on the S7-1500 profile rail. Robust, industrial-grade device connections with PROFINET-compliant RJ45 connectors. Redundant power supply and extended temperature range from -40°C to +70°C. Installation without patch panel possible using IE FC RJ45 Plug 180 and IE FC Standard Cable. Use of straight connection cables possible due to integrated autocrossover function. Clear diagnostic display on the device via LED (Power, Link status, Data traffic) and fault relay contact with easy setting via SET button. Unmanaged compact switch, DC 24 V, 16x 10/100 Mbit/s RJ45 ports electrically. Extensive accessories such as SITOP PSU100C 24 V/3 A and 24 V/8 A for regulated power supply, FC FO plugs and case for self-configuration of FO cables (ST/BFOC) for on-site assembly, RJ45 connectors, SCALANCE TAP104, terminal block for fault contact and power supply, mounting screws, and various Fast Connect cable variants (also pre-assembled) with stripping tool complete the system.
Switch to the future - SCALANCE X.
EAN: 4047622311981.
