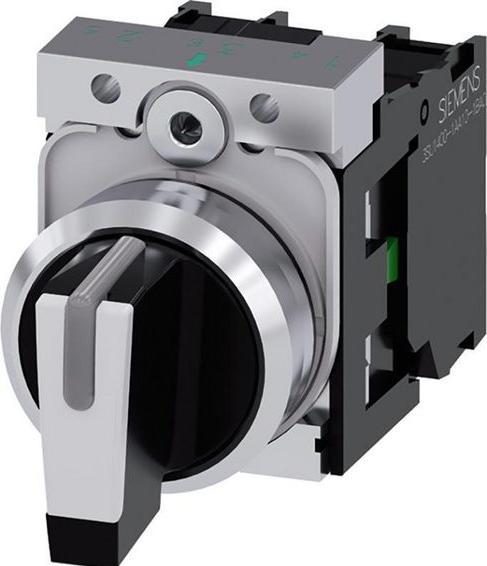

Siemens Selector switch 22mm black I-O-II 1NO1NO

Number of positions: 3
Actuator type: Short handle
Contact arrangement: 2 normally open
Protection class: IP20, IP66, IP67, IP69, IP69K
Switching angle: 45 x 2
Current max: 10 A
Series: SIRIUS ACT
Cut-out diameter: 22.3 mm
Housing material: Metal, plastic
Connection type: Screw mounting
AC voltage max: 500 V
DC voltage max: 500 V
Switch actuation: Latching

IEC 60947-1, EN 60947-1, IEC 60947-5-1, EN 60947-5-1. Complete selector switches, 22 mm, metal (glossy). Extremely robust IP69K complete units from Siemens with selector switch in shiny metal. In these new models, the electrical module is permanently installed and secured only by the bracket. Easy installation suitable for use in extreme environments. No special tools required. Simple geometry for mounting holes. Connection to the most common communication systems (PROFINET, AS-Interface, IO-Link).
