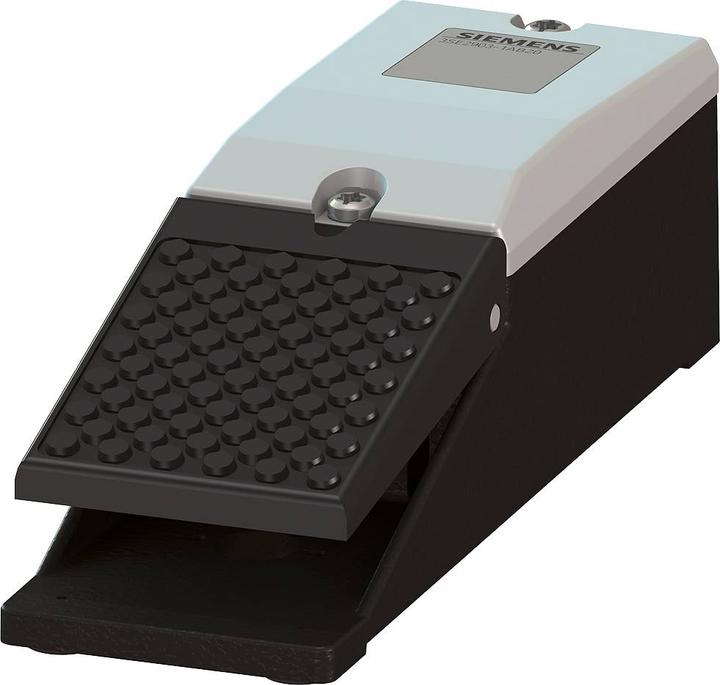

Siemens Safety foot switch,single pedal,2N0+2NC

Range = SIRIUS
Series = 3SE2
Contact number and position = DPST
Contact configuration = 2 NO/2 NC contacts
Contact operation = Pushbutton
Cover = No
Number of pedals = 1
Protection class = IP65
Push button material = Thermoplastic
Housing material = Aluminum
Length = 220mm

IEC 60947-5-1. The safety foot switch with a pedal, order no. ; 764-4073 764-4073 , locks on actuation in accordance with EN ISO 13850. After the danger has been eliminated, the machine can only be restarted after the pushbutton on the top of the housing has been manually released. Safety foot switch 3SE29. The 3SE29 safety foot switch is available in a metal housing for harsh applications or a plastic housing for less harsh environments. These foot switches can be supplied with one or two pedals and with or without a cover. Mounting holes, for floor mounting Latching or momentary contact versions >10,000,000 operations Temperature range -25 to +80 °C.
