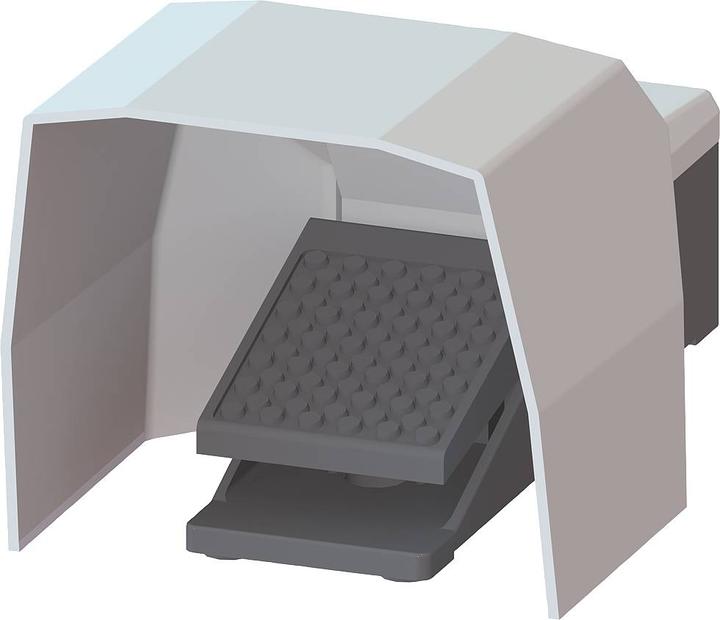

Siemens Safety foot switch single pedal 1S+1Ö

Area: SIRIUS
Series: 3SE2
Number and Position of Contacts: SPST
Contact Configuration: Normally Closed/Normally Open
Contact Operation: Push Button
Cover: Yes
Number of Pedals: 1
Protection Class: IP65
Push Button Material: Thermoplastic
Housing Material: Aluminum
Housing Color: Gray
Width: 156 mm

The safety foot switch with one pedal locks upon actuation according to EN ISO 13850. After the hazard has been eliminated, the machine can only be restarted after the push button on the top of the housing is manually released. The safety foot switch 3SE29 is available in a metal housing for harsh applications or a plastic housing for less demanding environments. These foot switches can be supplied with one or two pedals and with or without a cover. Mounting holes for floor installation. Locking or push contact versions with over 10,000,000 operating cycles. Temperature range: -25 to +80 °C.
