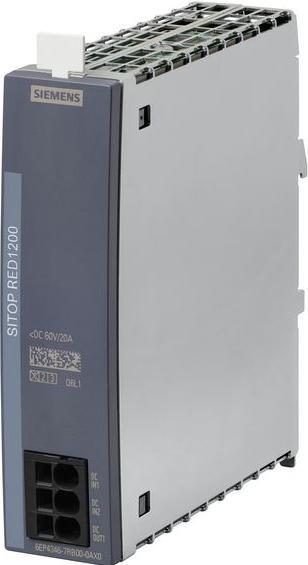

Siemens Redundancy module SITOP RED1200 DC 12V DC 24V DC 48V - Parallel

Siemens Digital Industry Redundancy Module 6EP4346-7RB00-0AX0

Manufacturer: Siemens Digital Industry
Designation: Redundancy Module
Output Current Type: 6EP4346-7RB00-0AX0
Supply Voltage Type: DC
Output Voltage: 12..48 V
Adjustable Output Voltage: No
Nominal Output Voltage 1: 24 V
Nominal Output Current 1: 20 A
Rated Supply Voltage for DC: 12..48 V
Electrical Connection Type: Spring Clamp Connection
DIN Rail Mounting Possible: Yes
Wall Mounting Possible: No
Suitable for Rack Mounting: Yes
Installation Width: 35 mm
Installation Height: 225 mm
Direct Mounting Possible: No
Width: 35 mm
Height: 135 mm
Depth: 125 mm
Protection Class (IP): IP20

The SITOP RED1200 redundancy module is designed to decouple two SITOP power supplies with a maximum output current of 10 A each. The SITOP RED1200 redundancy modules are the optimal addition for all 12, 24, and 48 V power supplies to ensure additional protection against supply failure. The redundancy module decouples two identical 12, 24, or 48 V power supplies, ensuring that if one power supply fails, the supply to the consumers is still maintained by the second power supply. Identical power supplies can also be connected in parallel via the redundancy modules for increased performance. Regardless of the industry or requirements, Siemens offers reliable and efficient power supplies for every system.
