Siemens Proximity switch magn 17mm/A 7mm/E DC 3SE6627-2CA04

Siemens Digital Industrial Switching Element 3SE6627-2CA04

Manufacturer: Siemens Digital Industries
Designation: Switching element with magnetic switch
Type: 3SE6627-2CA04
Number of contact-bearing outputs with signaling function: 1
Actuation type: Magnetic
Electrical connection type: Cable
Sensor width: 88 mm
Sensor height: 25 mm
Sensor length: 13 mm
Explosion protection category for gas: none
Explosion protection category for dust: none
Housing material: Plastic
Safe switching distance OFF: 17 mm
Safe switching distance ON: 7 mm
SIL according to IEC 61508: 3
Performance Level according to EN ISO 13849-1: Level e
Ambient temperature: -25 to 70 °C
Mechanical installation condition for sensor: quasi-flush
Voltage type: DC
Cross/short circuit detection possible: yes
With monitoring function for downstream devices: no
Suitable for safety functions: yes
Protection class (IP): IP67

Siemens Digital Industrial Switching Element 3SE6627-2CA04: additional details

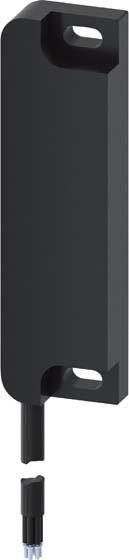

Magnetic switch switching element 25 x 88 mm for right door stop
Switching elements: Safety contacts 2Ö, signaling contact 1Ö with connection cable 3 m without LED, the corresponding switching magnet 3SE6714-2CA or offset by 90° 3SE6724-2CA.

Magnetic switch SIRIUS 3SE66 for space-saving, tamper-proof protection grid, flap, or protective door monitoring. The contactless coded devices are small and compact, making them suitable for tight spaces. They meet the highest safety requirements according to PL e and SIL 3. They are available in various shapes and sizes. Different combinations of switching elements and cable lengths, variants with LED for quick diagnostics, as well as plugs for fast connections are available. Accessories include spacers and various couplings with connection cables in different lengths. Safety is a SIRIUS business.
EAN: 4047621002668.
