Siemens Ground fault circuit interrupter

Ratings
Delivered between Thu, 24.7. and Thu, 14.8.
free shipping

Product details

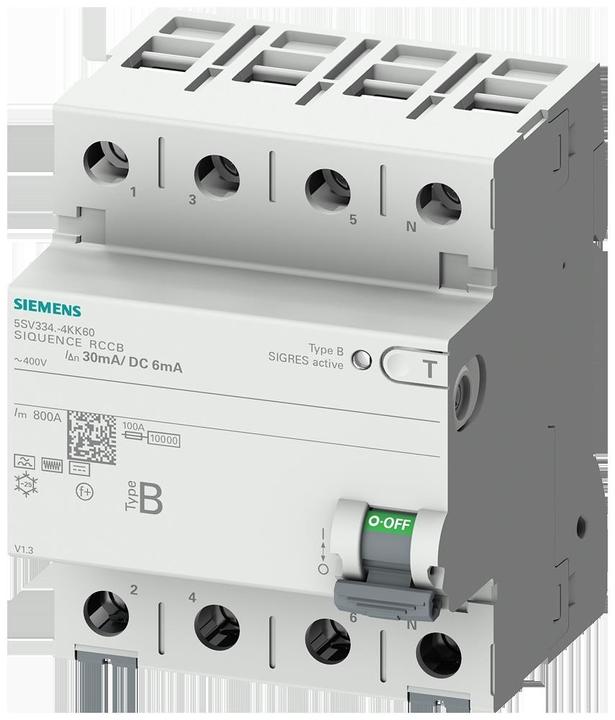

Siemens Dig.Industr. RCD 4-pole 5SV3344-4KK60

Manufacturer: Siemens Dig.Industr.
Description: 4-pole RCD
Type: 5SV3344-4KK60
Number of poles: 4
Rated voltage: 400 V
Rated current: 40 A
Rated residual current: 0.03 A
Mounting type: DIN rail
Residual current type: B
Selective type: no
Delayed type: yes
Short-circuit strength (Icw): 10 kA
Surge current strength: 3 kA
Voltage type: AC
With locking device: yes
Frequency: 50/60 Hz
Additional devices possible: yes
Protection class (IP): IP20
Width in division units: 4
Installation depth: 70 mm
Ambient temperature during operation: -25..45 °C
Connectable conductor cross-section multi-stranded: 0.75..35 mm²
Connectable conductor cross-section single-stranded: 0.75..35 mm²
Explosion-proof: no

The SENTRON 5SV3 RCD provides comprehensive protection for people and property against electric shock. The RCDs ensure reliable safety during installation thanks to the standard included gripping and touch protection. With the convenient slider manual operation, you can easily detach the RCDs from the DIN rail or busbar assembly without tools. The data matrix code on the device provides quick access to all technical data in the Siemens Industry Online Support App. The SENTRON protective switching devices can be expanded with a wide range of functions using the continuous accessories from the system modular kit. Optimal technology for your safety - only from Siemens.
EAN: 4001869601113.

Key specifications

Circuit breaker type
FI-LS fire protection switch
Length
40 mm
Width
40 mm
mounting style
Top-hat rail
number of poles
4
Item number
33686694

General information

Manufacturer
Siemens
Category
Residual-current device
Manufacturer no.
5SV33444KK60
Release date
17.5.2023

Circuit Breaker Features

Circuit breaker type
FI-LS fire protection switch
mounting style
Top-hat rail
number of poles
4
Tripping characteristic
B
Rated current
40 A
Rated current
0.03 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
400 V
Residual current (rated differential current)
10000 A
Protection type (IP code)
IP20

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
40 mm
Width
40 mm
Height
70 mm
