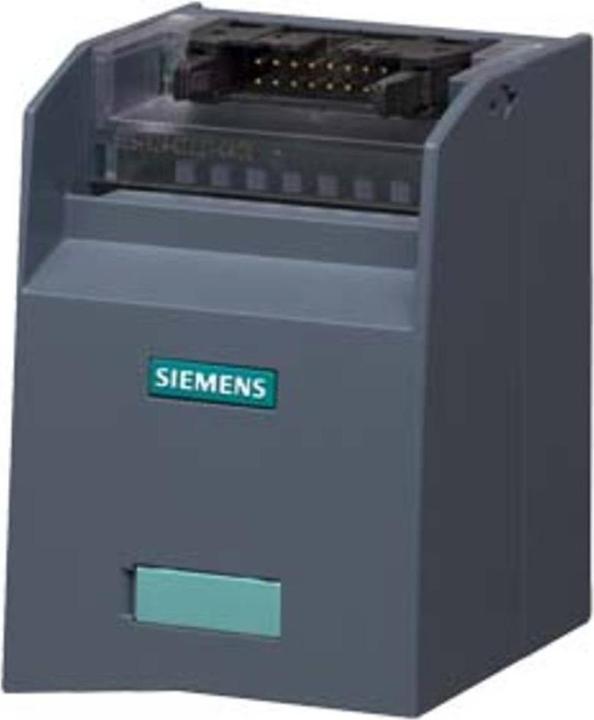

Siemens Connection module 6ES79240CC210AA0 1 pc.

Siemens Digital Industry Connection Module 6ES7924-0CC21-0AA0

Manufacturer: Siemens Digital Industry
Designation: Connection Module
Type: 6ES7924-0CC21-0AA0
Connectable conductor cross-section fine-stranded with ferrule: 0.5..2.5 mm²
Connectable conductor cross-section multi-stranded: 0.5..2.5 mm²
Rated current In: 1 A
Rated voltage: 50 V
Number of tiers: 1
Number of terminals per tier: 1
Internally bridged tiers: no
Type of electrical connection 1: Plug connection
Type of electrical connection 2: Screw connection
Mounting type: DIN rail TH35
Cross-connectable: no
Material of insulating body: other
Operating temperature: 0..60 °C
Flammability class of insulating material according to UL 94: V1
Width: 57 mm
Depth: 76 mm
Explosion-proof version "Ex e": no
End plate required: no
Color: gray
LED switching for: no
With PE connection: no
With shield connection: no
With feed function: yes
Isolation function: no

Siemens Digital Industry Connection Module 6ES7924-0CC21-0AA0: additional details
TPA connection module 3-row for analog modules of the SIMATIC S7-300
Type: Screw terminal without LED, packaging unit = 1 piece
16-pole IDC connection for cables

The TPA connection module for analog modules with screw terminals for 16-pole connection cables without LED for signaling serves as the interface between the connection cables from the field and the SIMATIC S7-300. It is mounted on the DIN rail and is precisely tailored to the respective task thanks to its functionality with screw terminals. This connection module is part of the fully modular connection of SIMATIC TOP connect for the fastest and safest system cabling. In addition to reduced wiring effort, potential sources of error in cabling can be significantly minimized. Analog signals from the periphery are connected to the connection modules of SIMATIC TOP connect and linked to the SIMATIC S7-300 via connection cable and front plug module.
