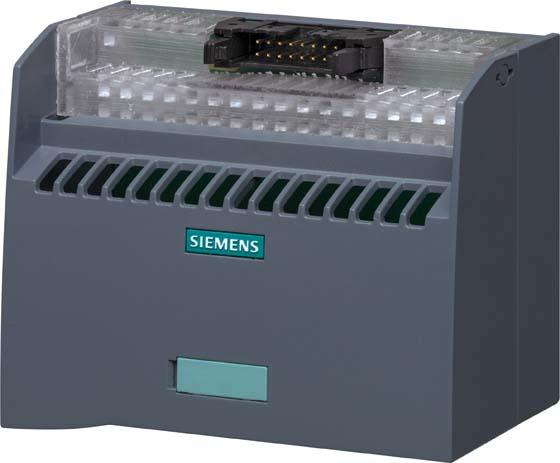

Siemens Connection module 1 pc. 6ES7924-0BF20-0BA0

Connection module TPOO with optocoupler 24 V DC, output 8 normally open contacts 24 V DC/4 A, overload and short-circuit proof, with LED. Screw terminal, packaging unit = 1 piece, 16-pin IDC connection for cables. The TPOO connection module with optocoupler and potential feed terminals (24 V DC) is used to connect 8 digital outputs (24 V DC) for potential adaptation/separation. The contact is designed as a normally open contact, with screw terminals and an LED for signaling. It serves as the interface between the connection lines from the field peripherals and the SIMATIC S7. This module is mounted on a DIN rail and is precisely tailored to the specific task thanks to its functionality with screw terminals. It is part of the fully modular connection system of SIMATIC TOP connect for the fastest and safest system wiring. In addition to minimal wiring effort, potential sources of error in wiring can be significantly reduced. Actuators from the peripherals are connected to the SIMATIC TOP connect connection modules and linked to the SIMATIC S7-300/1500 via connecting cables and front plug-in modules.
