Siemens Connecting cable 6XV18785BH30 1 pc.

Ratings
Delivered between Sat, 16.8. and Tue, 9.9.

Product details

Siemens Dig.Industr. IE Connecting Cable RJ45 6XV1878-5BH30

Manufacturer: Siemens Dig.Industr.
Designation: IE Connecting Cable RJ45 (4X2, 3 m)
Type: 6XV1878-5BH30
Conductor Surface: bare
Conductor Diameter: 0.6 mm
Number of Wires: 8
Twisting Element: pairs
Conductor Insulation Material: other
Conductor Marking: color
Shield over Twisting Element: none
Twisting: bundle
Shield over Twisting: foil + braid
Sheath Material: Polyvinyl Chloride (PVC)
Specification of Sheath Material: other
Sheath Color: green
Fire Behavior Class according to EN 13501-6: none
Flame Retardant: no
Low Smoke according to EN 61034-2: no
Outer Diameter approx.: 8 mm
Min. permissible bending radius, flexible use with forced guidance: 40 mm
Min. permissible bending radius, flexible use/free movement: 40 mm
Min. permissible bending radius, stationary use/fixed installation: 40 mm
Permissible cable outer temperature during installation/handling: -40..80 °C
Permissible cable outer temperature after installation without shock: -40..80 °C
Category: 6
NVP Value: 68 %

Siemens Dig.Industr. IE Connecting Cable RJ45 6XV1878-5BH30: additional details

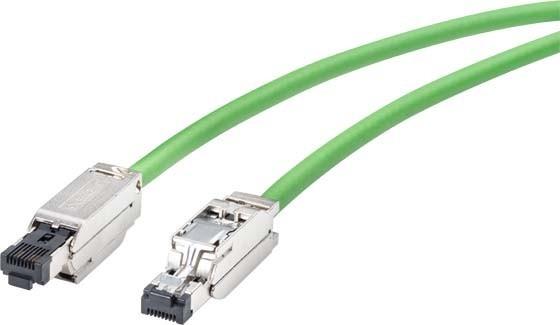

IE Connecting Cable IE FC RJ45 Plug-180/IE FC RJ45 Plug-180, IE FC Flexible GP 4x2 Cable pre-terminated with 2x IE FC RJ45 Plug 180 4 x 2, length 3.0 m.

SIMATIC NET Cables IE Connecting Cable IE FC RJ45-180 / IE FC RJ45-180
For connecting Industrial Ethernet participants with RJ45 interface in protection classes IP20/30, at transmission rates of 10/100/1000/10000 Mbit/s. Suitable for use in drag chains, e.g., in continuously moving machine parts. Silicone-free, making it suitable for use in the automotive industry (e.g., painting systems). Time-saving and error-free connection of end devices through pre-terminated AWG22 connection cables. Interference-resistant network through double-shielded cables and a continuous grounding concept. Reliable shield contact and strain relief integrated. Category 6 (Cat6a) of the international cabling standard ISO/IEC 11801 and EN 50173.

Key specifications

Plug type
RJ45
Cable + connector type
Various
Cable length
3 m
Item number
14161458

General information

Manufacturer
Siemens
Category
Cables + Plugs
Manufacturer no.
6XV18785BH30
Release date
10.11.2020

Colour

Colour
Green

Material

Material group
Plastic
Material
Polyvinyl chloride (PVC)

Cable + Connector Features

Cable + connector type
Various
Plug type
RJ45
Max. temperature
80 °C
Min. temperature
-40 °C
Cable length
3 m
Manufacturer Type
6XV1878-5BH30
Number of cores
8 x

Origin

Country of origin
China

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece
Scope of delivery
IE Connecting Cable IE FC RJ45 Plug-180, IE FC RJ45 Plug-180, IE FC Flexible GP 4x2 Cable pre-conf. with 2x IE FC RJ45 Plug 180 4 x 2, length 3.0m.

Product dimensions

Length
300 cm
Width
0.06 cm
