Siemens Commutating choke

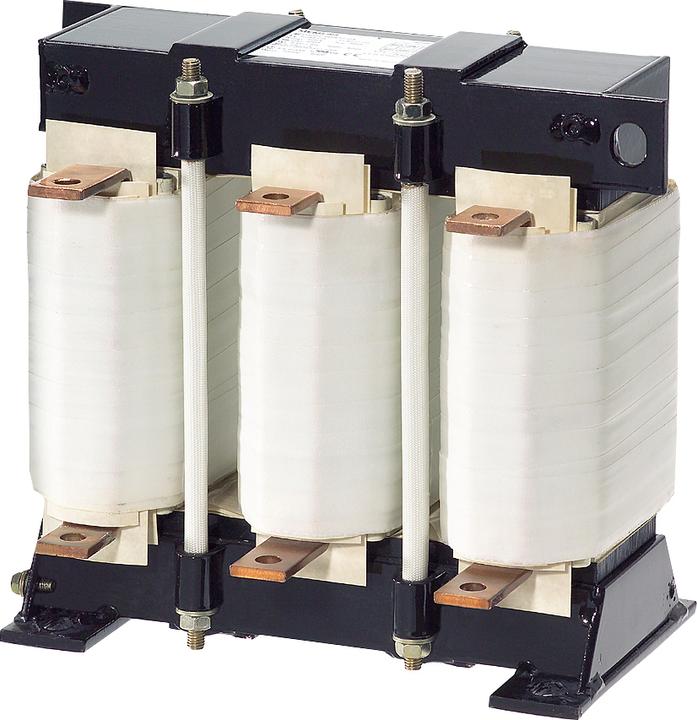

Siemens Dig.Industr. commutating reactor 4EU2522-3BA00-0AA0 Manufacturer :Siemens Dig.Industr. Designation :Commutating reactor for power converters Type :4EU2522-3BA00-0AA0 Suitable as suppression reactor :yes Suitable as mains reactor :yes Suitable as commutating reactor :yes Suitable as smoothing reactor :no Suitable as output reactor :no Number of poles, primary side :3 Rated operational frequency :50 Hz Max. Rated operating voltage Ue :400 V Rated current at AC :144 A Max. operating current (Ith) at operation :no operating current (Ith) at operating voltage DC :196 A Rated inductance :0.134 mH Protection class (IP) :IP00 Relative short-circuit voltage uk :4 % Siemens Dig.Industr. commutating reactor 4EU2522-3BA00-0AA0: more details COMMUT.THROTTLE F. CONVERTER, PHASES:3, UN1(V):400, ITHMAX 1(A) / F1(HZ):160 /50, I LN (A):144, UK(%):4, LN(MH):0,134, TA/ISOKL:40 /H, IP00, CONNECTION:FLAT CONNECTION, EN 61558-2-20 >RELAY< The three-phase chokes 4EU are designed as commutating chokes for high rated currents in connection with frequency converters as well as DC choppers and reliably reduce line-borne mains interference of these loads. , EAN: 4001869939537.
