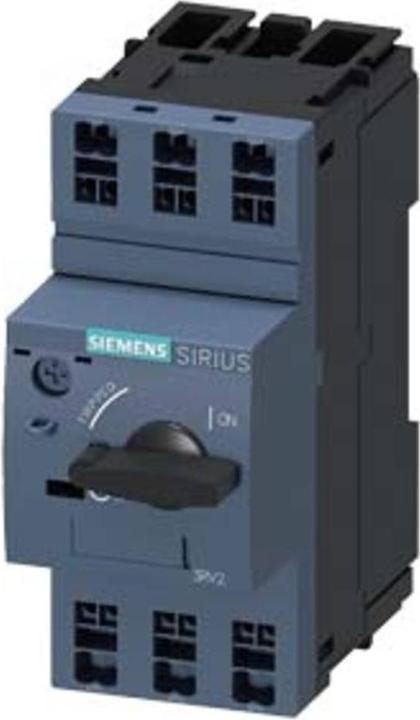

Circuit breaker size S00 for motor protection, CLASS 10 A release 2.8...4 A N release 52 A spring terminal connection. Standard switching capacity of SIRIUS 3RV2 circuit breakers for motor protection ensures safe disconnection in case of short circuits and protects consumers and installations from overload, as well as providing safe isolation of the installation from the power supply. The compact and climate-resistant circuit breakers are optimized for use in consumer branches due to their low heat dissipation, and are naturally suitable for IE3/IE4 motors and equally for switching direct current. Global approvals (e.g., IEC and UL/CSA) and applications in explosion-prone environments (ATEX or IEC Ex) are standard. Device variants are available for motor protection (also with overload relay function), plant protection, short circuit protection of starter combinations, transformer protection, as main and emergency stop switches, and for use in IT networks. They come with screw or spring terminal connections for quick, maintenance-free, and vibration-resistant connections, and optionally with built-in auxiliary switches. The comprehensive accessories, such as auxiliary switches, auxiliary releases, signaling switches, etc., are uniform across all sizes. The use of various power supply options, such as the associated SIRIUS 3RV29 power supply system, significantly reduces the main circuit wiring. The 3RV2 circuit breakers replace the proven 3RV1 series. Simple, efficient, always up to date - the SIRIUS system modular concept.
Circuit breaker type | Circuit breaker |
Length | 97 mm |
Width | 45 mm |
number of poles | 3 |
Item number | 9724525 |
Manufacturer | Siemens |
Category | Residual-current device |
Manufacturer no. | 3RV2011-1EA20 |
Release date | 24.9.2018 |
Circuit breaker type | Circuit breaker |
Mounting type | Screw fastening |
number of poles | 3 |
Rated voltage | 690 V |
voltage type | AC/DC |
Protection type (IP code) | IP20 |
Country of origin | Germany |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 97 mm |
Width | 45 mm |
Height | 106 mm |
