Siemens Auxiliary switch for contactor

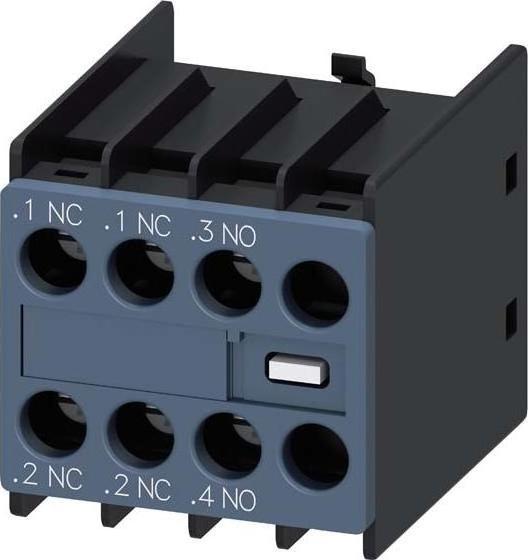

Siemens Digital Industry Auxiliary Switch Block 3RH2911-1HA12

Manufacturer: Siemens Digital Industry
Designation: Auxiliary Switch Block 1S+2Ö, S00+S0
Type: 3RH2911-1HA12
Number of contacts as normally closed: 1
Number of contacts as normally open: 2
Rated operational current Ie at AC-15, 230 V: 6 A
Type of electrical connection: Screw connection
Design: Plug-in
Mounting type: Other
Base: Without

Additional details:
Auxiliary switch, front-mounted, 1 S + 2 Ö, .1/.2, .1/.2, .3/.4, --/--, current path: 1 Ö, 1 Ö, 1 S, --, screw connection, for contactors 3RT2 and auxiliary contactors 3RH2. SIRIUS 3RH29 auxiliary switch for expanding auxiliary contacts in the control circuit. The front-mounted auxiliary switches 3RH29 can be mounted on contactors 3RT2 and auxiliary contactors 3RH2 without tools, independent of size. The auxiliary switches 3RH19/3RH29 are available as front-mounted or side-mounted variants, with up to four instantaneously switching or up to two early switching normally closed and normally open contacts. The auxiliary switches can be designed as positively guided contact elements in auxiliary contactors 3RH or as mirror contacts in power contactors 3RT. They are available with screw connection and spring terminal connection. Simple, efficient, always up to date - the SIRIUS system modular concept.
EAN: 4011209829367.
