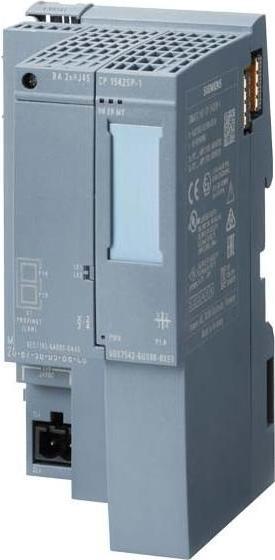

Siemens 6GK7542-6UX00-0XE0 Communication processor CP 1542SP-1 to the

Siemens digital industrial communication processor 6GK7542-6UX00-0XE0

Manufacturer: Siemens Digital Industries
Designation: Communication processor for Simatic S7-ET
Type: 6GK7542-6UX00-0XE0

Number of hardware interfaces:

• Industrial Ethernet: 1
• With optical interface: No

Supported protocols:

• PROFIBUS: No
• CAN: No
• INTERBUS: No
• ASI: No
• KNX: No
• MODBUS: No
• Data-Highway: No
• DeviceNet: No
• SUCONET: No
• LON: No
• PROFINET IO: No
• PROFINET CBA: No
• SERCOS: No
• Foundation Fieldbus: No
• EtherNet/IP: No
• AS-Interface Safety at Work: No
• DeviceNet Safety: No
• INTERBUS-Safety: No
• PROFIsafe: No
• SafetyBUS p: No
• Other bus systems: No

Bluetooth radio standard: No
WLAN 802.11: No
IO-Link master: No
Redundancy capability: No
Type of data transmission: Other
Transmission rate: 100,000 kBit/s
With electrical isolation: No
SIL according to IEC 61508: Without
Suitable for safety functions: No
Performance level according to EN ISO 13849-1: None
Associated equipment (Ex ia): No
Associated equipment (Ex ib): No
Explosion protection category for gas: None
Explosion protection category for dust: None

Dimensions:

• Width: 60 mm
• Height: 117 mm
• Depth: 74 mm

Further details: Communication processor CP 1542SP-1 for connecting a SIMATIC S7-ET 200SP to Industrial Ethernet. Supports open IE communication (TCP/IP, ISO-on-TCP, UDP), PG/OP, S7 routing, IP broadcast/multicast, SNMPV1, DHCP, e-mail, IPV4/IPV6, time synchronization via NTP, access to the web server of the CPU. Bus adapter required.
EAN: 4047622199619.
