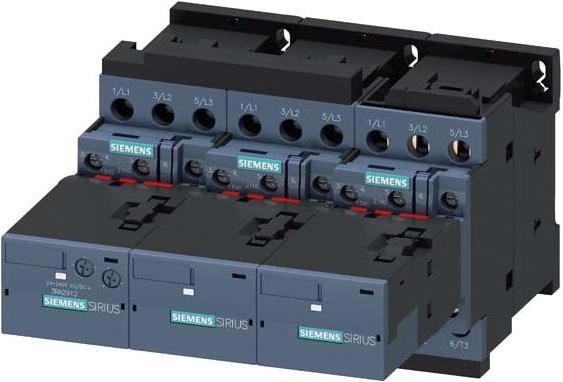

Siemens 3RA2423-8XF32-1AL2 Contactor combination 1 pc.

Siemens Digital Industry Star-Delta Combination S0 3RA2423-8XF32-1AL2. Manufacturer: Siemens Digital Industry. Designation: Star-Delta Combination S0 AC 230 11 kW/400 V 3p. Type: 3RA2423-8XF32-1AL2. Function: Star-Delta Contactor. Rated control supply voltage Us at AC 50 Hz: 230 V. Rated control supply voltage Us at AC 60 Hz: 230 V. Rated control supply voltage Us at DC: 0 V. Voltage type for actuation: AC. Number of normally open contacts as main contacts: 3. Connection type main circuit: Screw connection. Rated operational current Ie at AC-3, 400 V: 25 A. Rated operational power at AC-3, 400 V: 11 kW. Protection class (IP): IP20. Protection class (NEMA): other.

Additional details: Star-Delta combination AC-3, 11 kW/400 V, AC 230 V 50/60 Hz, 3-pole, size S0, screw connection, electrical and mechanical interlocking, 3 S + 3 Ö integrated. Star-Delta combination SIRIUS 3RA24 for gentle starting of three-phase asynchronous motors. The Star-Delta combination 3RA24 is a tested and factory pre-assembled combination of three 3RT2 contactors, which are already wired, mechanically and electrically interlocked. The included function module with integrated control logic and time setting replaces the complete wiring in the control circuit. They are climate-resistant, globally approved (e.g., IEC and UL/CSA), and IE3/IE4 ready. The Star-Delta combinations 3RA24 are available with AC and DC actuation in sizes S00 to S3. They are offered in screw and spring clamp connection technology for mounting on a DIN rail or screw fastening. Additionally, variants for connection to IO-Link or AS-Interface are available. The accessories for the 3RT2 contactors are uniform for all sizes and can also be used for the contactor combinations. The Star-Delta combinations 3RA24 replace the proven series 3RA14. Simple, efficient, always up to date - the SIRIUS system modular concept. EAN: 4011209838512.
