Sick Reflection light barrier

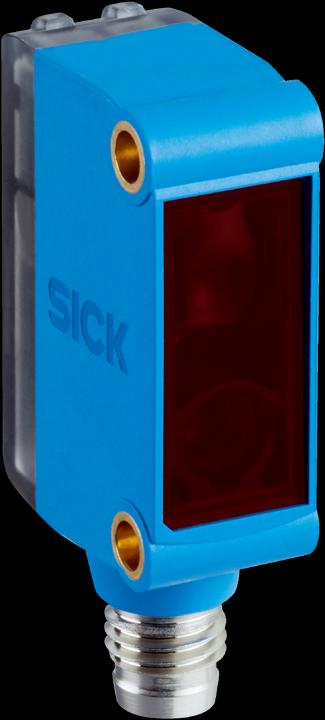

Sick miniature photoelectric sensor GL6-P4111

Manufacturer: Sick
Designation: Miniature photoelectric sensor
Type: GL6-P4111
Rated switching distance: 5000 mm
Max. switching distance: 6000 mm
Max. output current: 100 mA
Number of contact outputs with signaling function: 1
Design of interface for safety-related communication: Other
Design of electrical connection: M8 plug connector
Design of switching output: PNP
Equipment protection class: Protection class 3
Explosion protection category for gas: None
Explosion protection category for dust: None
Enclosure type: Cuboid

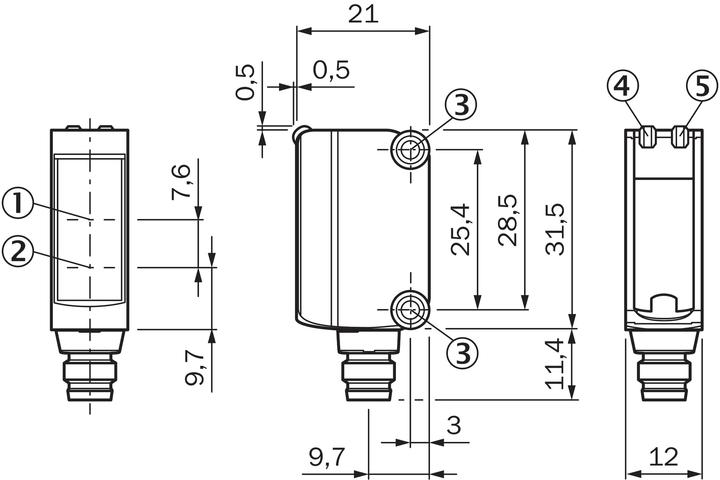

Width of sensor: 12 mm
Height of sensor: 31.5 mm
Length of sensor: 21 mm
Sensing function: Light/dark switching
Material of optical surface: Plastic
Material of enclosure: Plastic
Max. output current at the safe output: 100 mA
Min. reflector distance: 350 mm
Ambient temperature: -25 °C
Response time: 0.625 ms
Switching frequency: 1000 Hz
Rated control supply voltage Us at AC 50 Hz: 10 V
Rated control supply voltage Us at DC: 10...30 V
Voltage type: DC
Laser protection class: Other
Sensor wavelength: 650 nm
Light type: Red light polarized
Suitable for safety functions: Yes
Protection class (IP): IP67

Further details:
Miniature photoelectric sensors, G6, GL6-P4111, Device type: Photoelectric proximity switches and photoelectric sensors, Max. switching distance: 0.03 m ... 6 m, Sensor type: Retro-reflective sensor, Detection principle: Double lens, Switching output: PNP, Switching type: Light/dark switching, Connection type: M8 plug, 4-pin, Light emitter: PinPoint LED, Light type: Visible red light, Housing material: ABS/PC.
