Sick Reflection light barrier

Sick small photoelectric sensor GL10-P4211

Manufacturer: Sick
Designation: Small photoelectric sensor G10
Type: GL10-P4211

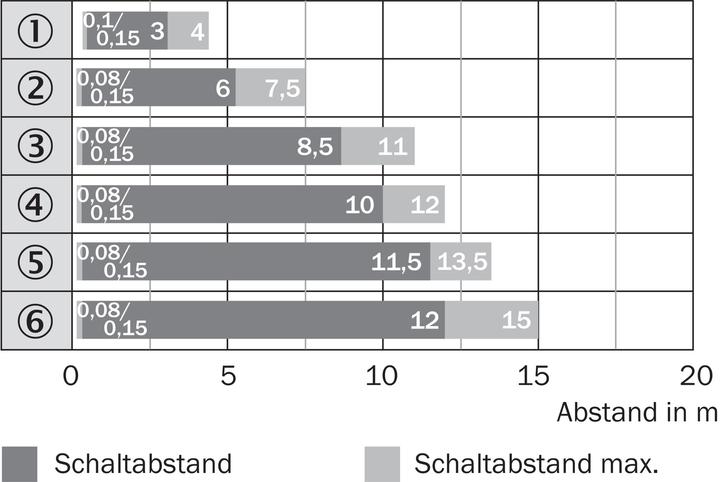

Rated switching distance: 12000 mm
Max. switching distance: 15000 mm
Max. output current: 100 mA
Setting method: Parameterisation
Number of contact outputs with signalling function: 1
Version of the interface for safety-related communication: Other
Version of the electrical connection: M12 plug connector
Version of the switching output: PNP
Equipment protection class: Protection class 3
Explosion protection category for gas: None
Explosion protection category for dust: None
Enclosure type: Cuboid

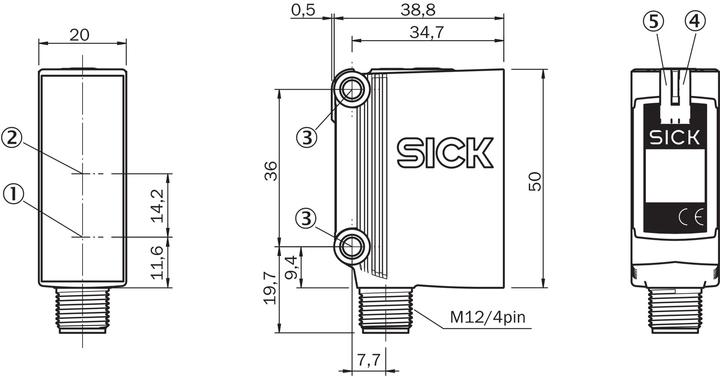

Width of sensor: 20 mm
Height of sensor: 50 mm
Length of sensor: 39 mm
Sensing function: Light/dark switching
Material of optical surface: Other
Material of enclosure: Plastic
Max. output current at the safe output: 100 mA
Min. reflector distance: 5000 mm
Ambient temperature: -30 °C
Response time: 0.5 ms
Switching frequency: 1000 Hz
Rated control supply voltage Us at AC 50 Hz: 10 V
Rated control supply voltage Us at DC: 10...30 V
Voltage type: DC
Laser protection class: Other
Wavelength of the sensor: 625 nm
Light type: Red light polarised
Suitable for safety functions: Yes
Protection class (IP): IP67

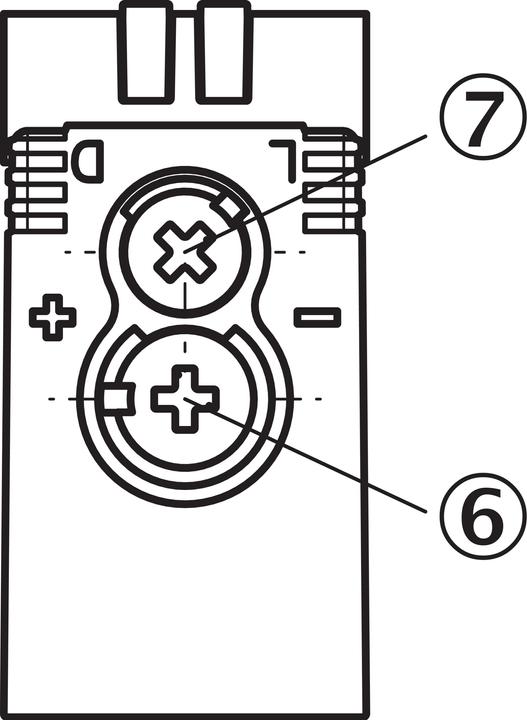

Further details: Small photoelectric sensors, G10, GL10-P4211, max. switching distance: 0.08 m ... 15 m, 0.08 m ... 12 m, Sensor principle: Retro-reflective photoelectric sensor, Detection principle: Double lens, Switching output: PNP, Switching type: Light/dark switching, Connection type: M12 plug, 4-pin, Light emitter: PinPoint LED, Setting: Potentiometer.
