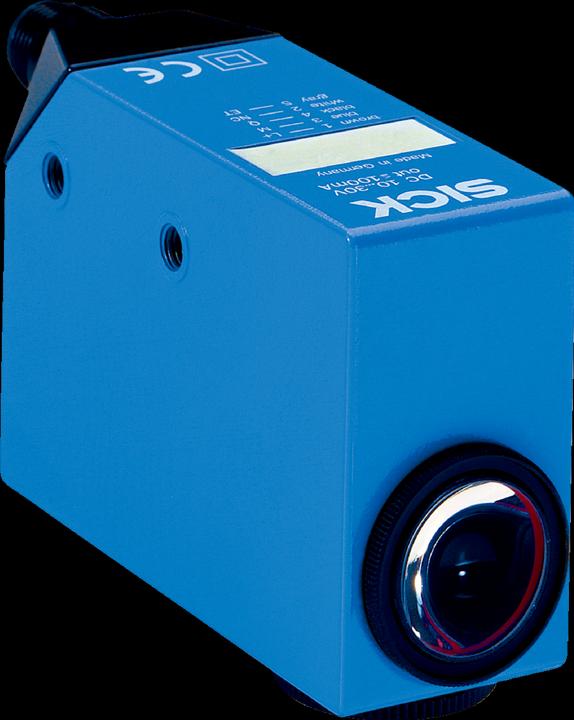

Sick Colour sensor

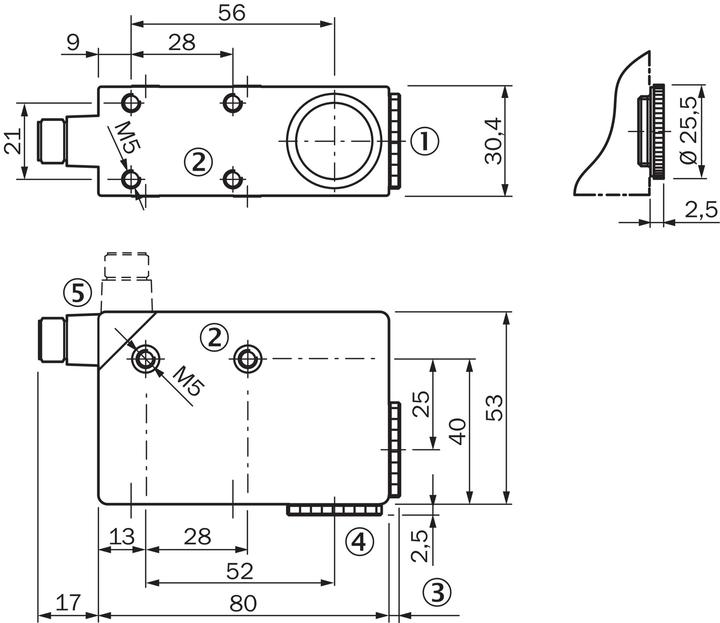

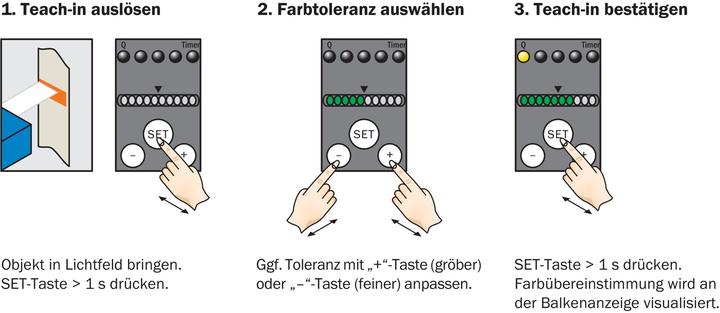

Sick colour sensor CS81-P1112 Manufacturer :Sick Designation :Colour sensor Type :CS81-P1112 Rated control supply voltage Us at AC 50 Hz :10..30 V Rated control supply voltage Us at DC :10..30 V Voltage type :DC Max. Output current :100 mA Open-circuit current :120 mA Switching frequency :1000 Hz Electrical connection design :M12 plug connector Analogue output 0 V ... 10 V :no Analogue output 0 mA ... 20 mA :no Analogue output 4 mA ... 20 mA :no Analogue output -10 V ... +10 V :no With other analogue output :no Switching output version :PNP Switching function version :other Setting method :Teach-in Light type :Multicolour LED Housing material :Zinc Housing design :Cuboid Sensor width :30.4 mm Sensor height :80 mm Sensor length :53 mm Nominal scanning range :12.5 mm Equipment protection class :Protection class 2 With blanking function :yes With fibre optic connection :no With interchangeable lens :no With time function :no Ambient temperature :-10..55 °C Protection class (IP) :IP67 Sick colour sensor CS81-P1112: more details Colour sensors, CS8, CS81-P1112, Communication interface: -, Light emitter: LED, Output (channel): 1 colour, Scanning range: 12.5 mm, Setting: Teach-in button, Teach-in method: 1-point teach-in static, Switching output: PNP, Light spot size: 2 mm x 4 mm, Connection type detail: Plug M12, 5-pin, Light spot position: Longitudinal , EAN: 4047084167492.
