Shuttle Sz270r8

Intel Core i7, Intel Core i3
10Ratings
Currently out of stock

Product details

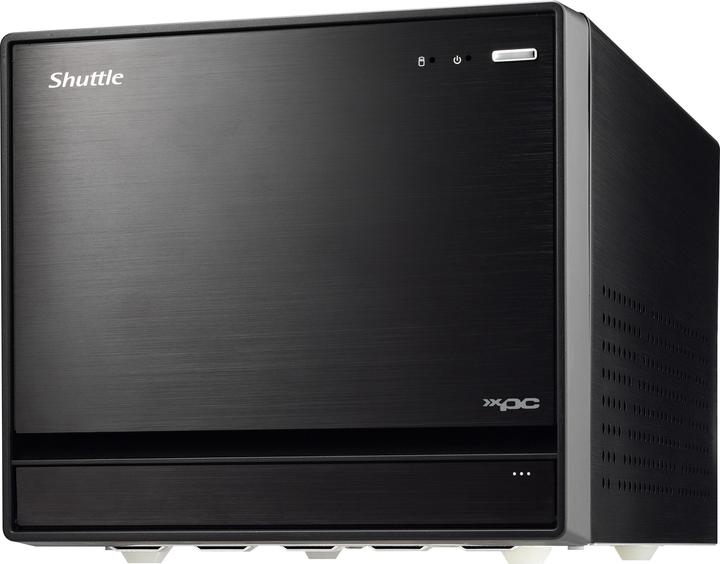

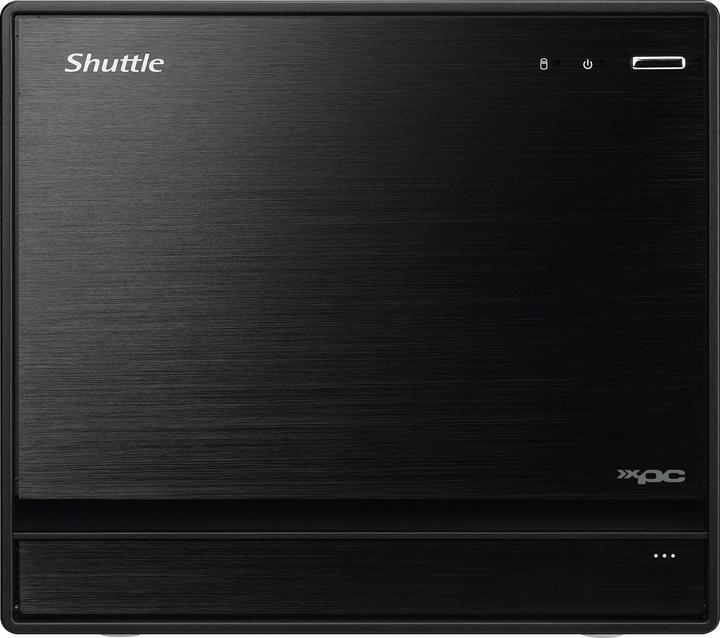

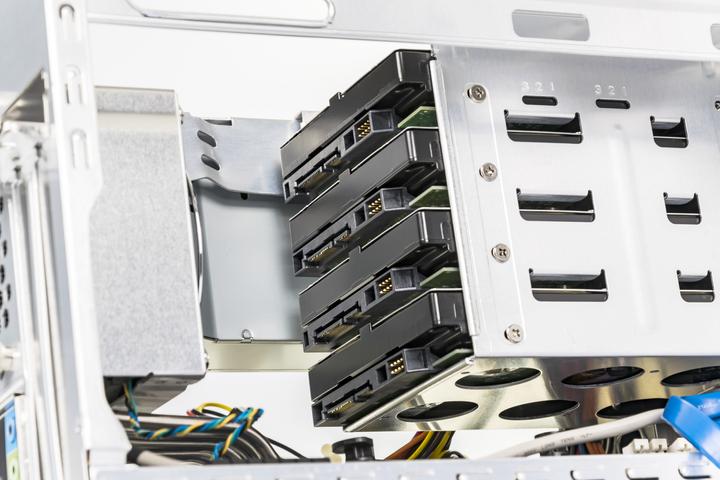

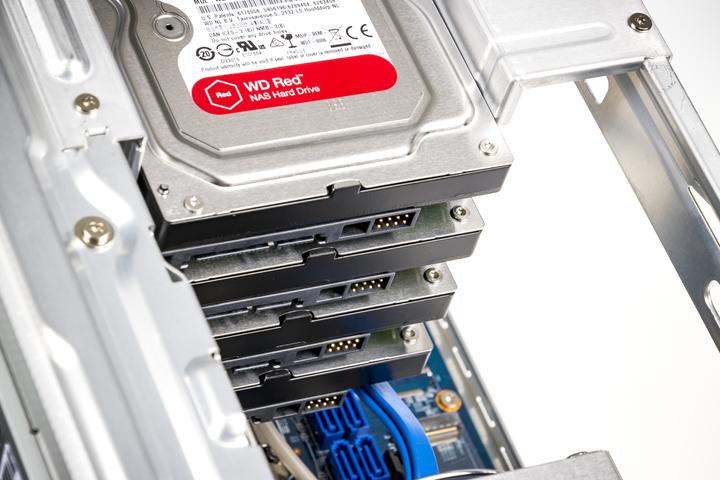

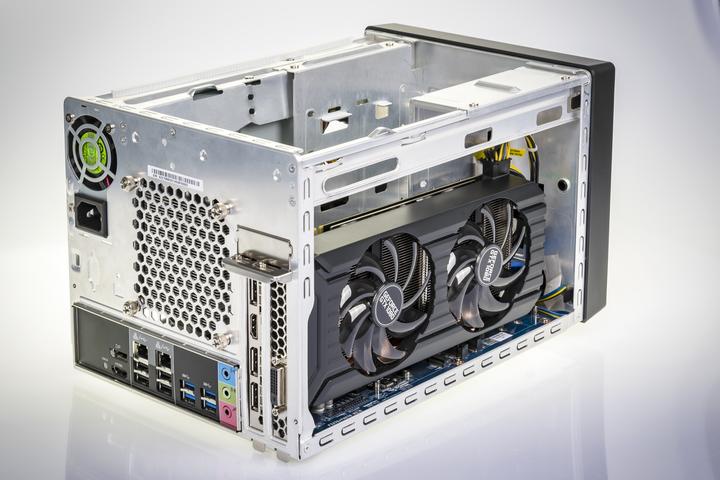

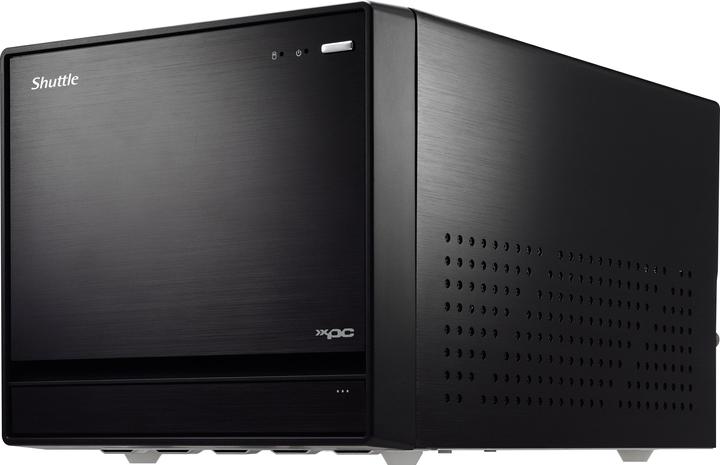

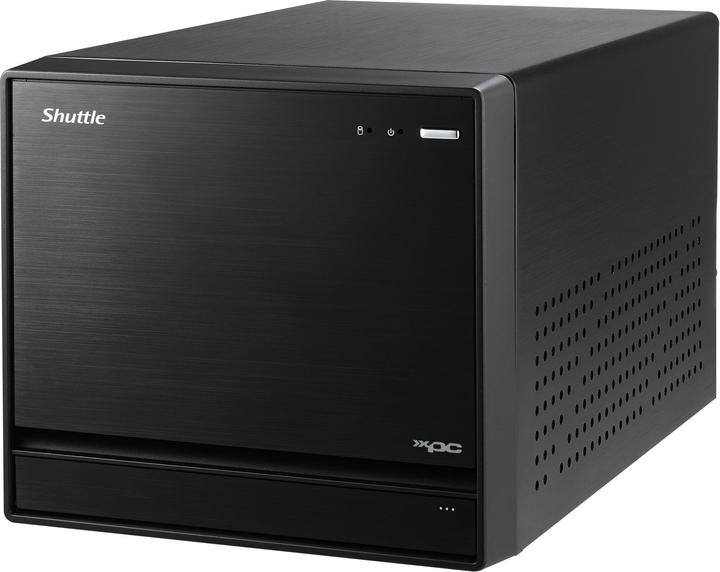

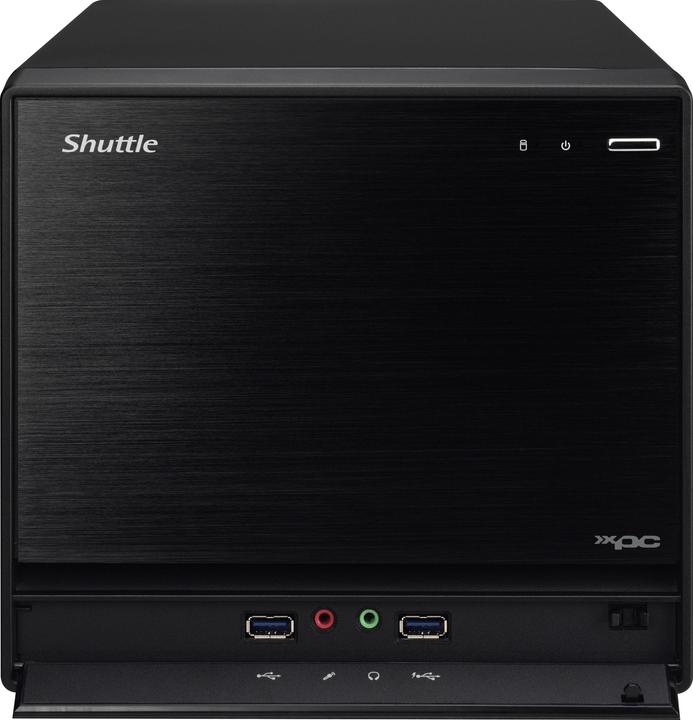

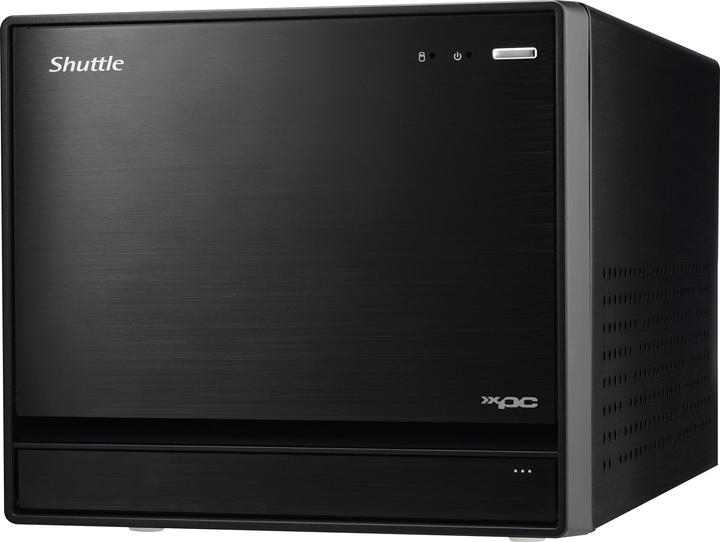

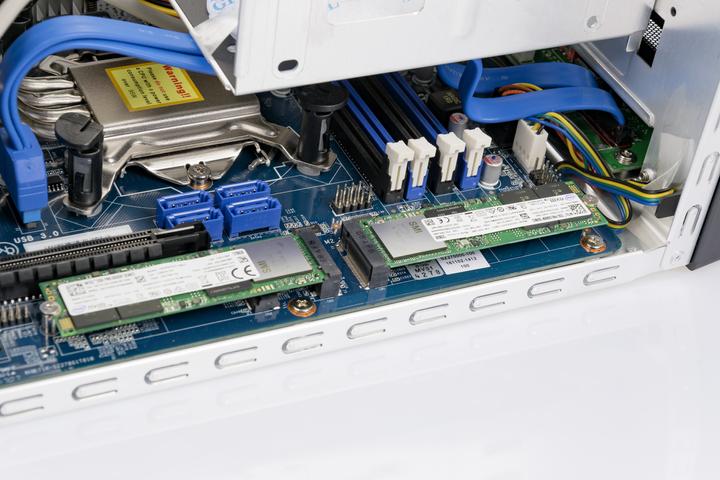

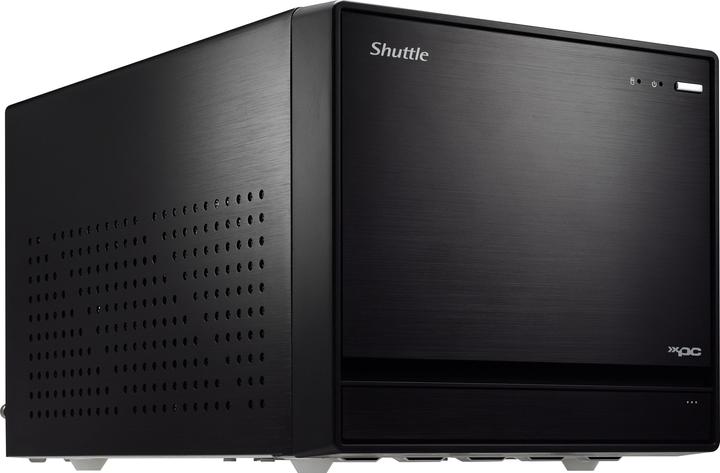

The Shuttle XPC Cube Barebone SZ270R8 supports four 3.5" hard drives in a cube case, allowing for a total capacity of up to 40 TB for home applications and commercial purposes. Additionally, the barebone accommodates two M.2 SSD cards with PCI-Express interface, enabling transfer rates of up to 32 Gbit/s, which are significantly faster than previous SATA SSDs. The M.2 slot supports Intel Optane memory. However, the platform is not only suitable as a storage solution in a stylish aluminum case, but it also provides enough power to serve as a high-end gaming PC or a workstation for graphic applications and video editing. The motherboard, equipped with Intel's Z270 chipset, supports LGA1151 "Skylake" and "Kaby Lake" CPUs, including the most powerful Core i7 models from the K-series. Additionally, large dual-slot graphics cards and up to 64 GB of DDR4 memory are possible.

Key specifications

Graphics card model
Intel HD Graphics
Internal connection options
M.2 (2x), S-ATA III (4x)
Network connections
RJ45 (2x)

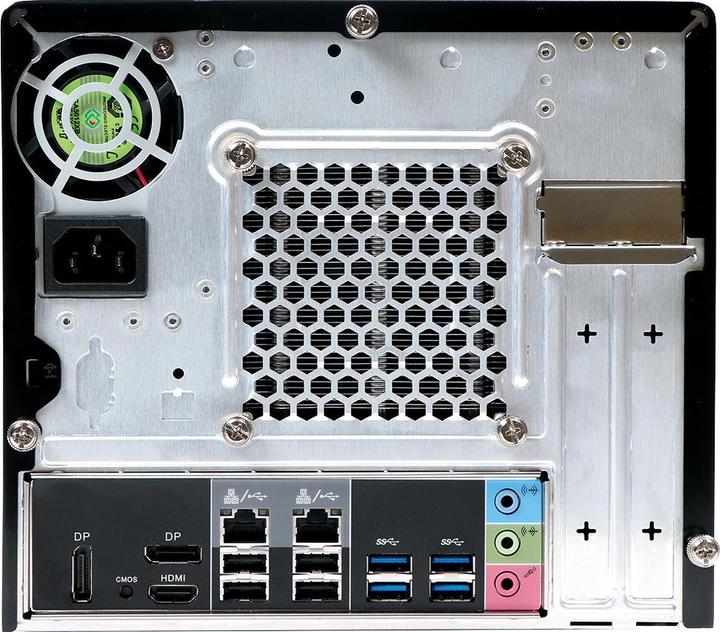

Video connections
DisplayPort (2x), HDMI (1x)
Memory type
DDR4-RAM
USB ports
USB-A
Documents
Technical data sheet.pdf
Item number
6817755

General information

Manufacturer
Shuttle
Category
Barebones
Manufacturer no.
SZ270R8
Release date
15.10.2017
External links
Manufacturer's site (de)

Barebone properties

Design
Small Form

Processor

Processor type
Intel Core i3, Intel Core i7
Number of processors
1 x
Socket
LGA 1151
Processor properties
64-bit architecture

Memory

Memory type
DDR4-RAM
Memory form factor
DIMM
Number of pins
288 x
Memory chip compatibility
DDR4-2133, DDR4-2400
Memory Slots available
4
Max. memory slots
4
Max. RAM
64 GB
Memory voltage
1.20 V

Graphics card properties

Graphics card model
Intel HD Graphics

Internal connections

Internal connection options
M.2 (2x), S-ATA III (4x)
Data storage controller
Intel Z270
RAID configuration
0, 1, 10, 5, JBOD
Number of 3.5" drive slots (internal)
4 x

External connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (4x), USB-A 3.0 (6x)
Data ports
PS/2 (4x)

Network

Network connections
RJ45 (2x)
Max. port speed
1000 Mbit/s
Network features
Wake on LAN

Wireless transmission

Connectivity
Ethernet

Video connections

Video connections
DisplayPort (2x), HDMI (1x)

Audio connections

Audio outputs
3.5mm jack (1x)

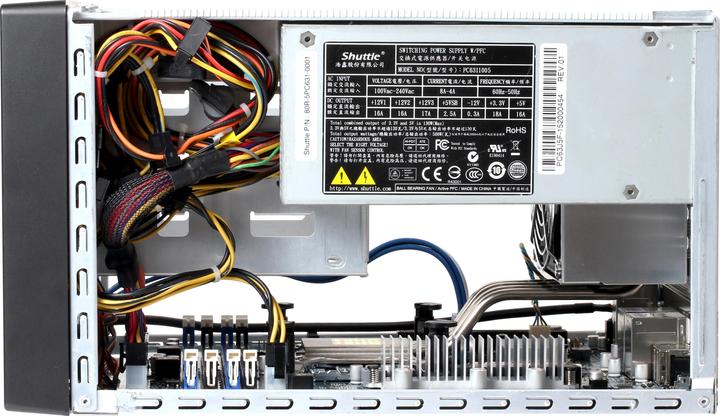

Power supply properties

Power
500 W

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 x protective cap, 1x power cable, 4x S-ATA cables, Driver DVD, Installation guide, Screws, Thermal grease

Product dimensions

Weight
5000 g
Width
215.40 mm
Length
348.40 mm
Height
190.20 mm

Package dimensions

Length
46.40 cm
Width
28 cm
Height
23.50 cm
Weight
5.12 kg
