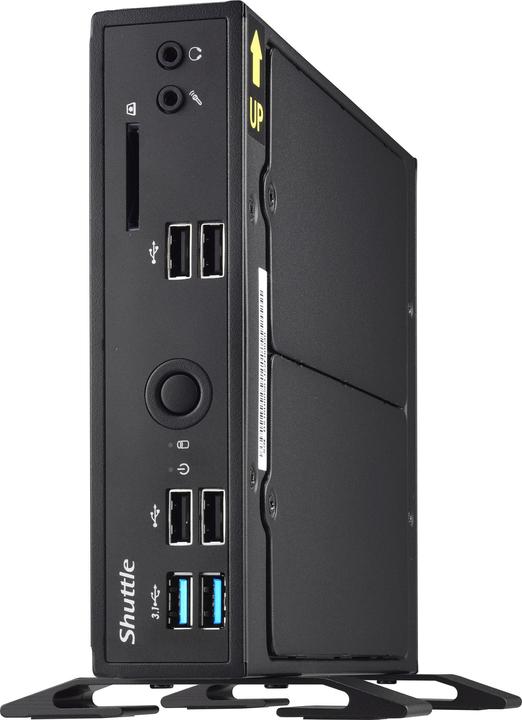

Shuttle DS10U

Intel Celeron 4205U
2Ratings
Currently out of stock

Product details

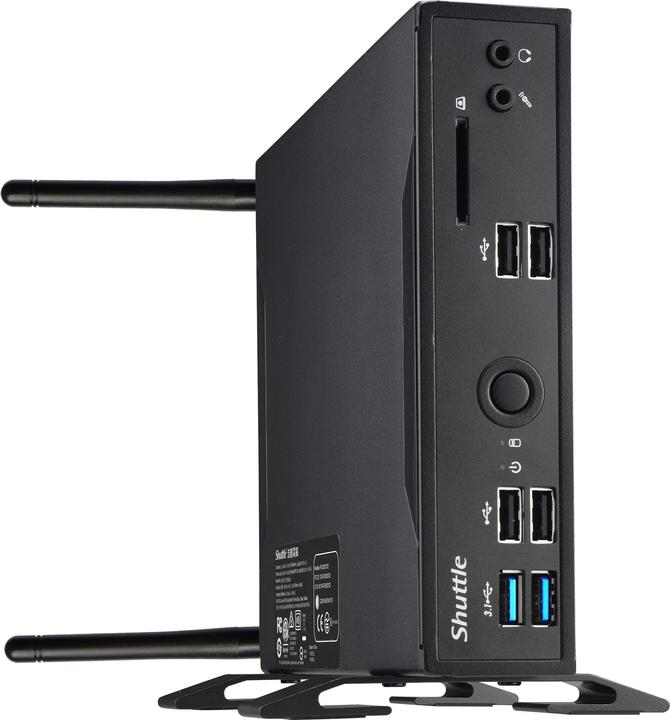

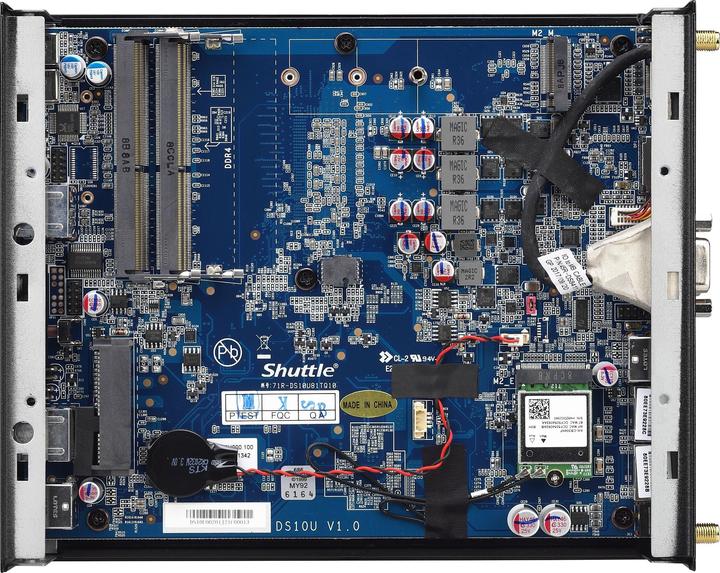

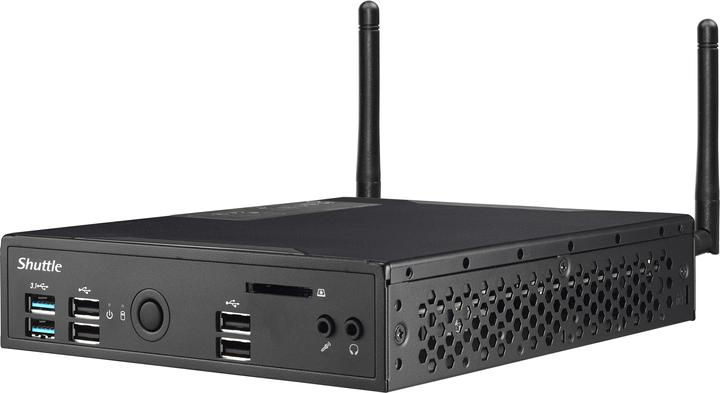

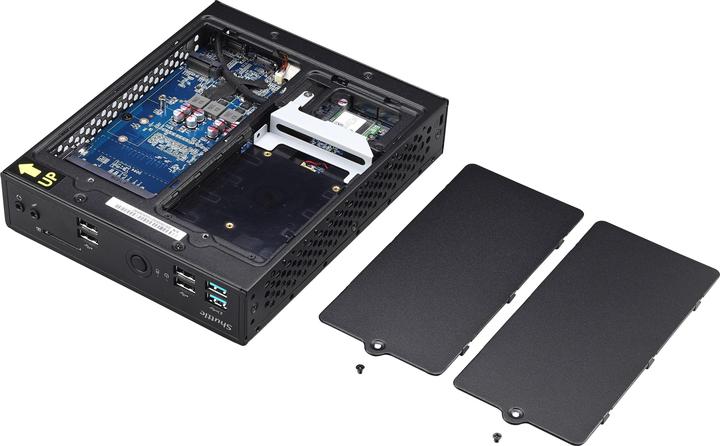

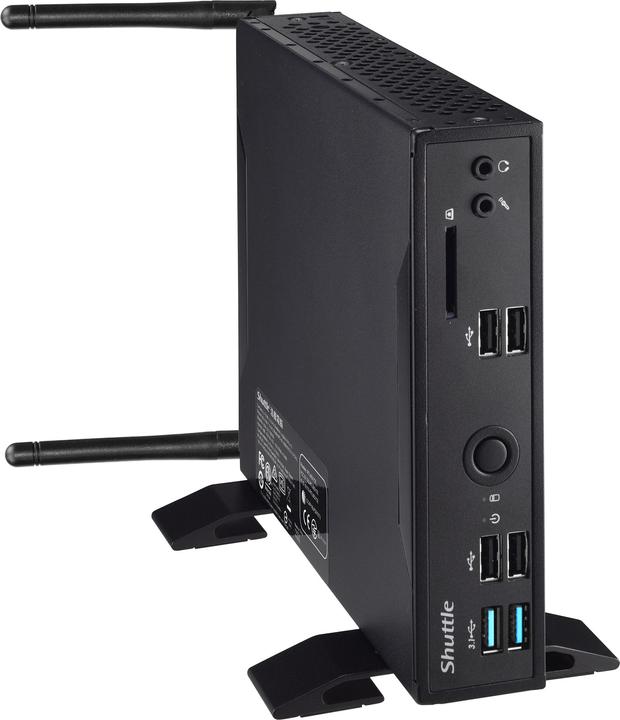

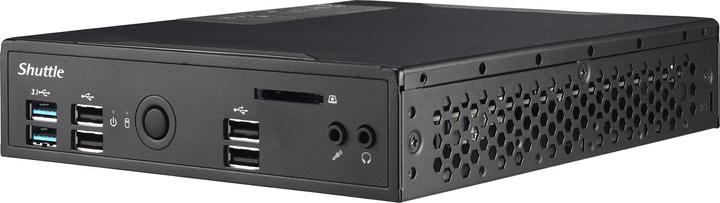

Fanless 1.3 Liter PC in industrial design with Whiskey Lake-U processor. The DS10U series consists of slim, fanless barebone PCs housed in a robust metal casing with universal connectivity options. The soldered Intel "Whiskey Lake-U" processor provides sufficient performance for playing 2160p/60 videos in 4K resolution. There are two digital ports for UHD displays and a traditional VGA port. Components can be easily installed: two memory modules, a 2.5" drive, and an M.2-2280 SSD fit behind the convenient covers. An LTE module can also be optionally integrated into the 2.5" bay. Thanks to completely passive cooling, the system is virtually maintenance-free, suitable for 24/7 continuous operation, and very energy-efficient. It is ideal for professional applications such as digital signage, POS, control, office use, or as a media PC. It is suitable for triple monitor operation thanks to its three monitor connections.

Key specifications

Number of processor cores
2 -Core
Graphics card model
UHD Graphics 610
Internal connection options
M.2 (1x), S-ATA III (1x)
Network connections
RJ45 (2x)

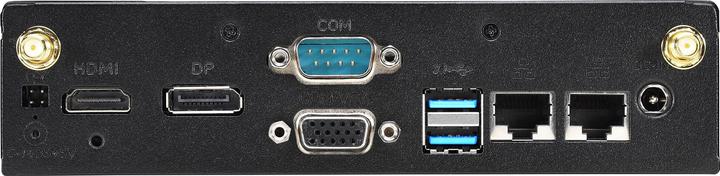

Video connections
DisplayPort (1x), HDMI (1x), VGA (1x)
Memory type
DDR4-RAM
USB ports
USB-A
Item number
12344141

General information

Manufacturer
Shuttle
Category
Barebones
Manufacturer no.
PEB-DS10U001
Release date
20.11.2019

Barebone properties

Design
Small Form

Processor

Processor type
Intel Celeron 4205U
Clock frequency
1.80 GHz
Number of processors
1 x
Number of processor cores
2 -Core
Number of threads
2
Socket
BGA 1528
Max. TDP
15 W
Processor properties
Onboard processor

Memory

Memory type
DDR4-RAM
Memory form factor
SO-DIMM
Memory Slots available
2
Max. memory slots
2
Max. RAM
32 GB
Memory voltage
1.20 V

Graphics card properties

Graphics card model
UHD Graphics 610
Max. connected monitors
3 x

Internal connections

Internal connection options
M.2 (1x), S-ATA III (1x)
Data storage controller
Intel i211, Intel i219LM
"Number of 2.5"" drive slots"
1 x

External connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x), USB-A 3.0 (4x)
Data ports
PS/2 (4x)

Network

Network connections
RJ45 (2x)

Wireless transmission

Connectivity
Bluetooth
Wi-Fi standard
Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac
Bluetooth version
4.0 LE

Video connections

Video connections
DisplayPort (1x), HDMI (1x), VGA (1x)

Audio connections

Audio outputs
3.5mm jack (1x)

Card reader properties

Memory card type
SD, SDHC, SDXC

Power supply properties

Power
65 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Quickstart overview

Product dimensions

Weight
2200 g
Width
200 mm
Length
165 mm
Height
39.50 mm

Package dimensions

Length
25.60 cm
Width
24.40 cm
Height
13.80 cm
Weight
2.27 kg
