Shuttle DH32U KONFIG - Barebone XPC slim

This space-saving slim PC integrates an energy-efficient 11th Gen Intel ULV processor "Tiger Lake-U" and supports no less than four Ultra HD displays at a 60 Hz refresh rate via HDMI 2.0b. The small metal case with included VESA mounts, the variety of connections, and reliable operation at temperatures up to 50 °C make this product an ideal foundation for digital signage, kiosks, surveillance, and other professional applications.

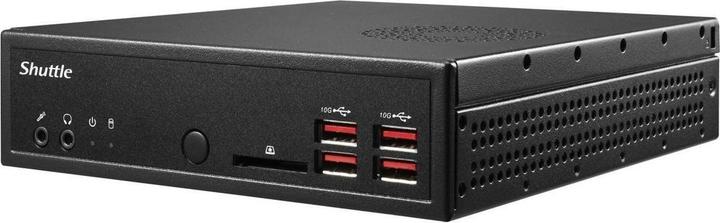

Case: Slim PC with a black metal case. Dimensions: 19 x 16.5 x 4.3 cm (L x W x H) = 1.35 liters. Weight: 1.3 kg net and 2.1 kg gross. Two openings for a Kensington lock and numerous M3 threaded holes on both sides of the case.

Power Supply: External 90 W power supply (fanless). Input: 100-240 V AC, 50/60 Hz. Output: 19 V DC, 4.74 A, max. 90 W. DC connector: 5.5/2.5 mm (outer/inner diameter). AC cable: 3-pin, approximately 1.7 m long, with C5/C6 cloverleaf connector to the power supply and CEE-7/7 plug with protective contact (Type E+F) for connection to the socket.

Operating System: This system is delivered without an operating system. It is compatible with Windows 10/11 and Linux (64-bit).

Processor: Model: Intel Pentium Gold 7505 (ULV). System-on-a-chip architecture (SoC) with integrated memory and graphics controller - no additional chipset required. FCBGA1449 package - soldered directly to the motherboard. Codename: Tiger Lake-U (11th Generation Intel Core processors). Cores / Threads: 2 / 4. Base clock rate: 2.0 GHz. Max. Turbo frequency: 3.5 GHz. Intel Smart Cache: 4 MB. Thermal Design Power (TDP): max. 15 W. Manufacturing process: 10 nm SuperFin. Maximum Tjunction temperature: 100 °C.

Integrated Graphics: Intel UHD Graphics functionality. Max. graphics clock frequency: 1.25 GHz. Execution units (EUs): 48. Supports DirectX 12.1, OpenCL 2.0. Supports up to four independent displays via HDMI 2.0b with 4096x2304@60Hz. Processor cooling: heatsink with 50 mm fan (temperature-controlled).
