Shuttle BPCAL02-i5 industrial Box-PC, Core i5-1235U, 2x SO-DIMM, 2x LAN, 1x COM, 1xHDMI,4x USB, fan

Intel Core i5-1235U
Ratings
Delivered between Wed, 27.8. and Thu, 18.9.
free shipping

Product details

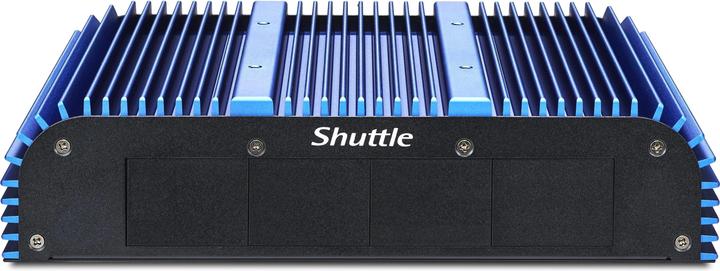

Fanless box PC with Intel Core processor in a robust housing

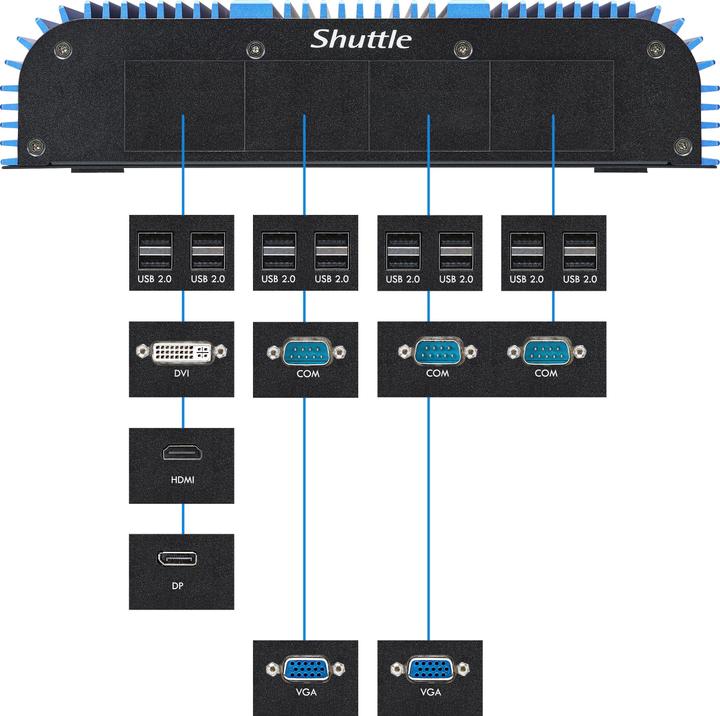

Shuttle's BPCAL02 series of fanless box PCs is powered by Intel's 12th generation Core processors (Alder Lake) and features a durable, robust chassis. It offers modular expansion options for various interfaces and mounting options. With advanced technology and flexible design, this industrial PC provides a reliable solution for a wide range of custom requirements in industrial environments.

Key specifications

Number of processor cores
10 -Core
Graphics card model
Intel Iris Graphics
Internal connection options
M.2 (1x)
Network connections
RJ45 (2x)
Video connections
HDMI (1x)
Memory type
DDR5 RAM
USB ports
USB-A
Item number
47184478

General information

Manufacturer
Shuttle
Category
Barebones
Manufacturer no.
BPCAL02-I5
Release date
12.7.2024

Barebone properties

Design
Small Form

Processor

Processor type
Intel Core i5-1235U
Clock frequency
1.30 GHz
Number of processors
1 x
Number of processor cores
10 -Core
Socket
BGA 1744
Max. turbo clock rate
4.40 GHz
Max. TDP
15 W
Processor properties
64-bit architecture, Intel Virtualisation Technology (VT-x), Onboard processor

Memory

Memory type
DDR5 RAM
Memory form factor
SO-DIMM
Memory Slots available
2
Max. memory slots
2
Max. RAM
64 GB
Memory voltage
1.10 V

Graphics card properties

Graphics card model
Intel Iris Graphics
Hardware application range
Multimedia

Internal connections

Internal connection options
M.2 (1x)

External connections

USB ports
USB-A
Exact USB ports
USB-A 3.2 Gen 2 (4x)
Data ports
IR Out (1x)

Network

Network connections
RJ45 (2x)
Max. port speed
1000 Mbit/s

Video connections

Video connections
HDMI (1x)

Audio connections

Audio outputs
6.3mm stereo (1x), Headphones Out (1x)

Power supply properties

Power
90 W

Origin

Country of origin
Taiwan

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 piece

Product dimensions

Weight
2850 g
Width
245 mm
Length
169 mm
Height
57 mm

30-day right of return
24 Months Warranty (Bring-in)
