Shuttle Box-PC System BPCAL02 Intel Core i3-1215U 8GB DDR5 128GB SSD NoOS

Fanless Box PC with Intel Core i3 Processor in Robust Housing

The Shuttle BPCAL02-i3XA is a fanless box PC complete system featuring a 12th generation Intel Core i3 processor (Alder Lake) housed in a durable, robust casing. This fixed configuration includes a selection of pre-installed I/O expansions for diverse applications in the industrial sector.

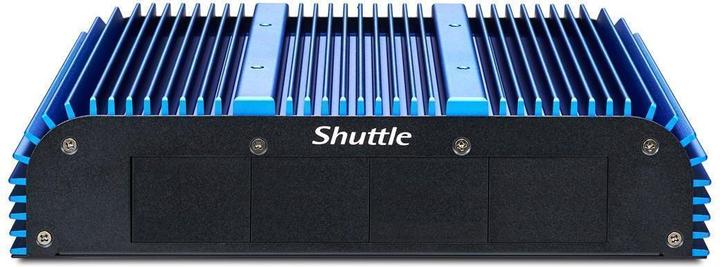

Robust Housing

• Fanless cooling system
• Sturdy aluminium/steel casing
• Dimensions (L x W x H): 16.9 x 24.5 x 5.7 cm (2.7 L)
• Net weight: 2.85 kg
• Protection class: IP30
• Mounting options: VESA 75x75 mm (optional Ear Mount and DIN Rail accessories available)

Operating Temperature Range

• 0 – +40 °C (optional -20 – +60 °C)
• Permissible humidity: 20 – 80 % (non-condensing)

Operating System Support

• Supports Windows 10/11 and Linux (64-Bit)

Processor

• Intel Core i3-1215U Gen. 12 "Alder Lake" ULV processor, 15 W TDP
• Integrated Intel UHD graphics with HDMI 2.0b and VGA port

RAM/SSD Storage

• 8 GB DDR5-4800 RAM
• 128 GB SSD module in M.2-2280M format, supports PCIe/NVMe

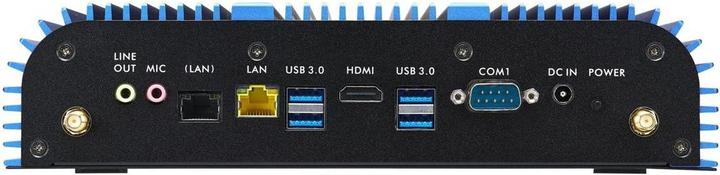

Connections

• HDMI 2.0b
• D-Sub VGA
• 4x USB 3.2 Gen 2
• 4x USB 2.0
• Dual 2.5G LAN (Intel)
• 3x COM Port (1x RS232, 2x RS232/422/485)
• Microphone-in and Line-out
• DC input (2.5/5.5 mm) supports 9-36V
• Power Button

Additional Features

• Hardware TPM v2.0 Infineon SLB9670VQ2 onboard

LTE/WLAN Options

• LTE/4G kit with 2 antennas (LTE card and Nano-SIM not included)
• WLAN function with 2 antennas Wi-Fi 6 (ax)

Power Supply

• DC input voltage: 9-36V
• External 90W/19V power supply

Complete Systems of the BPCAL02 Series

• Barebone Base: BPCAL02-i3
• Operating System: —
• Processor: Core i3-1215U
• M.2 SSD: 128 GB
• RAM: 8 GB DDR5

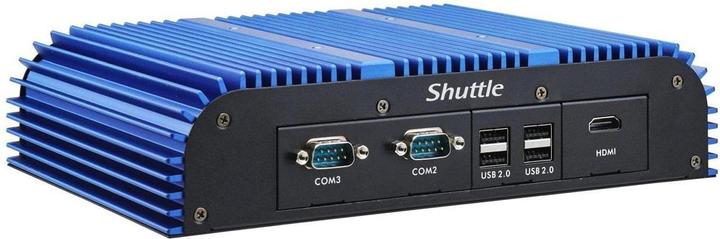

• Front Connections: 2x COM, 4x USB 2.0, VGA

Shuttle Box PC Barebone BPCAL02-i3XA Industry — Specification
Fanless and Quiet

• Fanless and quiet
• Equipped with passive cooling, hence no fan noise
• Ideal...
