Shuttle Barebone X270, black, p. 1151

Currently out of stock
Free shipping starting at 50.–

Product details

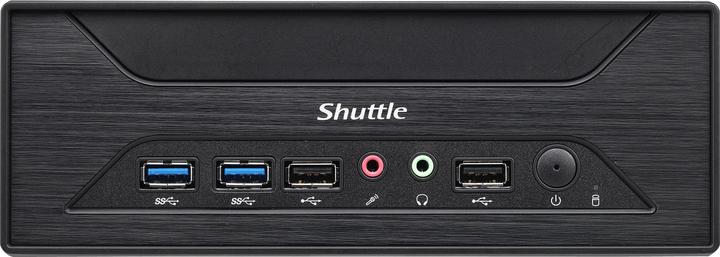

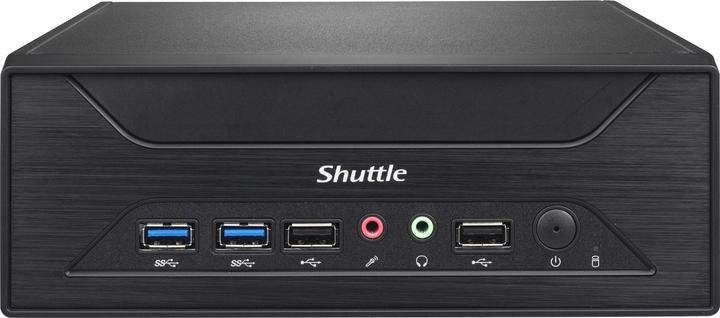

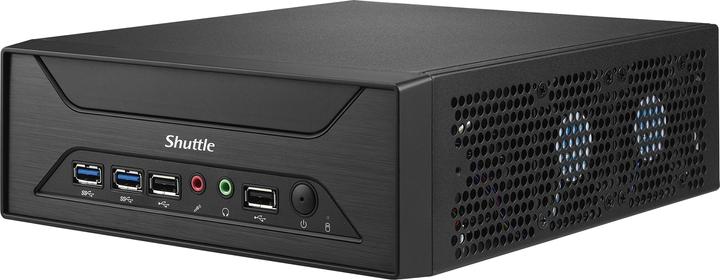

The Shuttle XPC slim XH270 is a powerful barebone PC that stands out for its compact design and versatile applications. With a robust metal chassis and a volume of just 3 liters, it accommodates up to four 2.5-inch drives as well as an M.2-2280 slot for SSDs. This system is ideal for office and media applications, allowing for a tailored selection of processors from a wide range. The three simultaneously usable graphics ports and numerous USB connections provide high flexibility. Additionally, the XH270 is equipped with a heat pipe cooling system that ensures quiet and stable performance. Support for RAID-10 and two Intel network ports that support teaming mode make it attractive for industrial applications as well. A special feature is the "Always-On-Jumper," which automatically powers the device back on after a power outage.

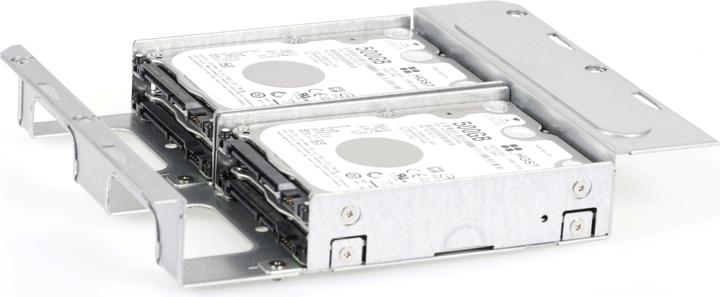

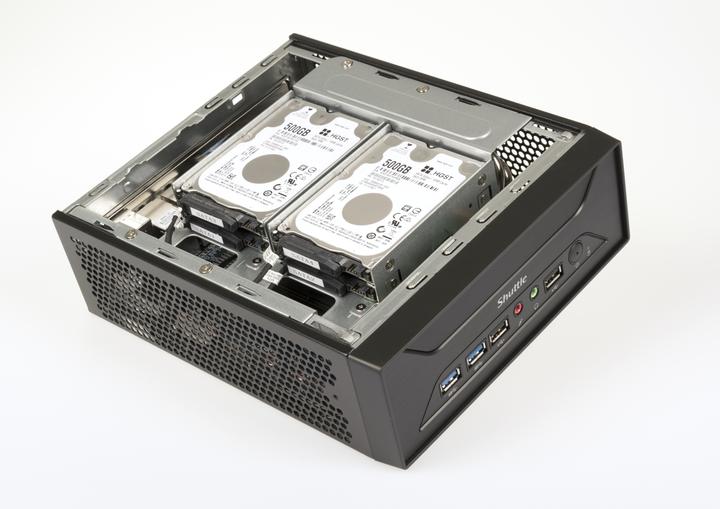

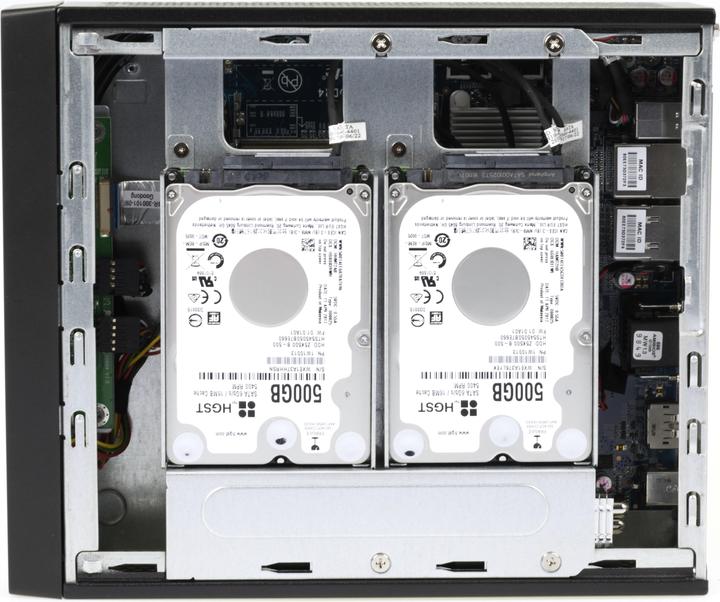

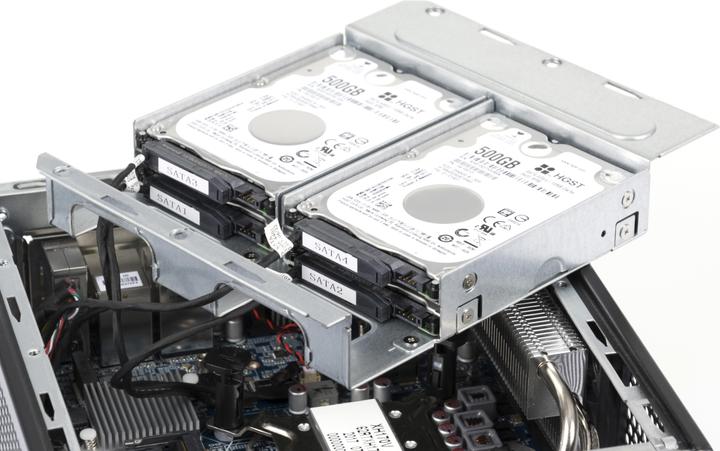

  • Support for up to four 2.5" drives and M.2 SSD for expanded storage options

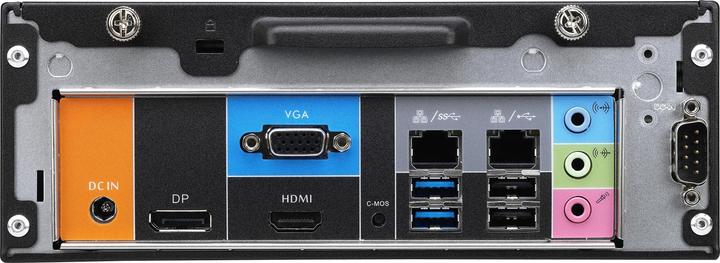

  • Three graphics ports for flexible display options, including high-resolution displays
  • Two RJ45 network ports with teaming mode for enhanced network performance
  • Energy-efficient design with a heat pipe cooling system for quiet operation
  • Always-On-Jumper for automatic power-on after power outages.

Key specifications

Memory type
DDR4-RAM
Video connections
DisplayPort (1x)HDMI (1x)VGA (1x)
Network connections
RJ45 (2x)
Internal connection options
M.2 (1x)S-ATA III (4x)
USB ports
USB-A
Documents
Technical data sheet.pdf
Item number
7027555

General information

Manufacturer
Shuttle
Category
Barebones
Manufacturer no.
XH270
Release date
12.12.2017

Barebone properties

Design
Small Form

Processor

Socket
LGA 1151
Processor properties
64-bit architecture

Memory

Memory type
DDR4-RAM
Memory form factor
SO-DIMM
Number of pins
260 x
Memory chip compatibility
DDR4-2133DDR4-2400
Memory Slots available
2
Max. memory slots
2
Max. RAM
32 GB
Memory voltage
1.20 V

Internal connections

Internal connection options
M.2 (1x)S-ATA III (4x)
Data storage controller
Intel i211
RAID configuration
01105
"Number of 2.5"" drive slots"
4 x

External connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (4x)USB-A 3.0 (4x)
Data ports
RS-232 (1x)

Network

Network connections
RJ45 (2x)
Max. port speed
1000 Mbit/s
Network features
Wake on LAN

Wireless transmission

Connectivity
Ethernet

Video connections

Video connections
DisplayPort (1x)HDMI (1x)VGA (1x)

Audio connections

Audio outputs
3.5mm jack (1x)

Power supply properties

Power
120 W
Fan diameter
0 mm

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 x protective cap4x S-ATA cablesCPU Heatpipe cooling system with thermal compoundDriver DVDExternal power supplyInstallation guideMounting material Screws

Product dimensions

Weight
2200 g
Width
200 mm
Length
240 mm
Height
72 mm

Package dimensions

Length
37.60 cm
Width
13.10 cm
Height
27 cm
Weight
3.28 kg
