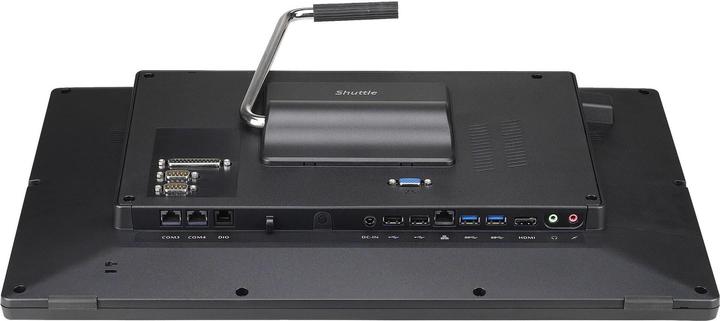

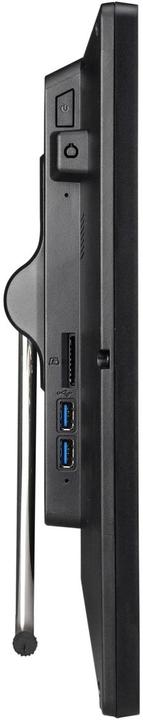

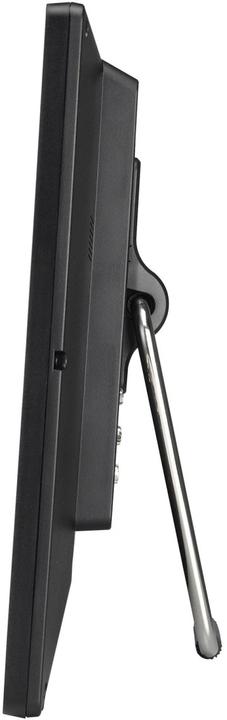

Shuttle Barb P92U AIO 19.5 65W Multitouch Black

Intel Celeron 5205U
Ratings
Currently out of stock

Product details

The Shuttle Barebone P92U is a versatile all-in-one system equipped with an Intel Celeron 5205U processor. This barebone device features passive cooling, making it ideal for noise-sensitive environments. With an integrated touchscreen, it allows for intuitive user interaction and is excellent for applications requiring direct input. The chassis is designed to provide a space-saving solution while offering a variety of connectivity options. The P92U supports up to 64 GB of DDR4 RAM and provides various expansion options, including M.2 PCIe and USB ports. This system is particularly suitable for use in offices, educational institutions, or as an interactive information station.

  • Passive cooling for silent operation
  • Integrated touchscreen for intuitive control
  • Supports up to 64 GB of DDR4 RAM
  • Variety of connectivity options, including USB-A and HDMI
  • Space-saving all-in-one design.

Key specifications

Number of processor cores
2 -Core
Graphics card model
Intel UHD Graphics
Internal connection options
M.2 PCIe (1x)
Network connections
RJ45 Gigabit Ethernet (1x)
Video connections
HDMI (1x), VGA (1x)
Memory type
DDR4-RAM
USB ports
USB-A
Item number
24552661

General information

Manufacturer
Shuttle
Category
Barebones
Manufacturer no.
P92U CELERON BLACK
Release date
21.6.2022

Barebone properties

Design
All-in-one

Processor

Processor type
Intel Celeron 5205U
Clock frequency
0.80 GHz
Number of processors
1 x
Number of processor cores
2 -Core
Number of threads
2
Socket
FCBGA1528
Max. turbo clock rate
1.90 GHz
Max. TDP
15 W
Processor properties
Onboard processor

Memory

Memory type
DDR4-RAM
Memory form factor
SO-DIMM
Memory chip compatibility
DDR4-2400
Memory Slots available
2
Max. memory slots
2
Max. RAM
64 GB

Graphics card properties

Graphics card model
Intel UHD Graphics

Internal connections

Internal connection options
M.2 PCIe (1x)
"Number of 2.5"" drive slots"
1 x

External connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x), USB-A 3.0 (4x)
Data ports
PS/2 (2x)

Network

Network connections
RJ45 Gigabit Ethernet (1x)
Max. port speed
1000 Mbit/s

Wireless transmission

Connectivity
USB
Wi-Fi standard
Wi-Fi 5 / 802.11ac
Bluetooth version
4.2

Video connections

Video connections
HDMI (1x), VGA (1x)

Audio connections

Audio outputs
6.3mm stereo (1x)

Card reader properties

Memory card type
SD

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
AiO Barebone, Driver DVD, External power supply, Mains connection cable, Screws, Short manual

Product dimensions

Weight
4290 g
Width
487 mm
Length
44 mm
Height
321 mm
