Product details
The Focus Plus 750 Platinum from Seasonic is a modern ATX-standard computer power supply with an 80 PLUS Platinum certification. With 750 W, it provides enough power to support even high-performance components. Its high-quality construction and modular cabling make it a great choice for demanding PC builds. The 3-phase fan control ensures the quietest operation possible at any load. At low loads, the fan remains off for completely silent operation. It only activates in a silent mode with low speed at around 30% load. Once the load exceeds 50%, the PWM-controlled cooling kicks in, increasing the fan speed according to the temperature. The power supply has an 80 PLUS Platinum certification, guaranteeing excellent energy efficiency of over 90%. It also features numerous safety circuits that protect the power supply from damage due to overvoltage, overcurrent, overload, short circuits, and undervoltage.
Form factor | ATX |
80 PLUS certificate | Platinum |
Modularity | Modular cable management |

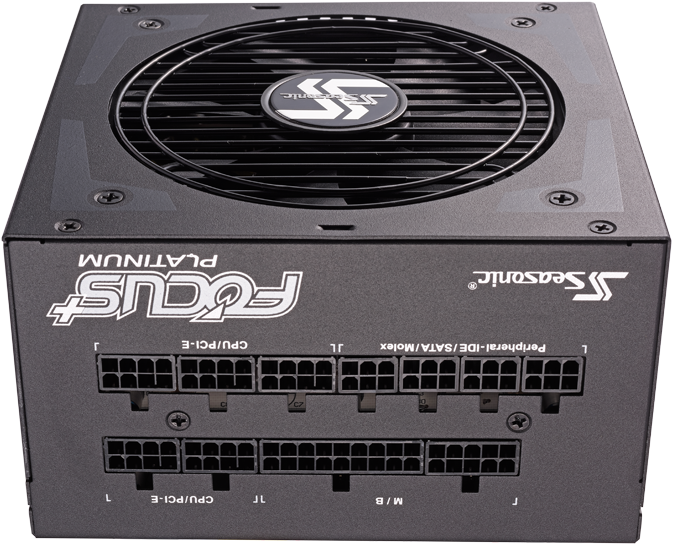

Internal connection options | 15-pin S-ATA (8x), 20+4 PIN ATX power connector (1x), 4-pin floppy (1x), 4-pin Molex (3x), 4+4-pin 12V (2x), 6+2-pin PCI Express (4x) |
Documents | |
Item number | 6412485 |
Manufacturer | Seasonic |
Category | Power Supply PC |
Manufacturer no. | SSR-750PX |
Release date | 30.7.2017 |
Colour | Black |
Exact colour description | Black, Black |
Form factor | ATX |
Efficiency | 92 % |
80 PLUS certificate | Platinum |
Modularity | Modular cable management |
Internal connection options | 15-pin S-ATA (8x), 20+4 PIN ATX power connector (1x), 4-pin floppy (1x), 4-pin Molex (3x), 4+4-pin 12V (2x), 6+2-pin PCI Express (4x) |
Fan location | Top side |
Cooling method | Active cooling |
Number of fans | 1 x |
Fan diameter | 120 mm |
Power protection features | EIA, OCP, OPP, OTP, OVP, SCP |
Power | 750 W |
CO₂-Emission | |
Climate contribution |
Length | 14 cm |
Width | 15 cm |
Height | 8.60 cm |
Length | 31.20 cm |
Width | 18.30 cm |
Height | 11.50 cm |
Weight | 2.82 kg |
