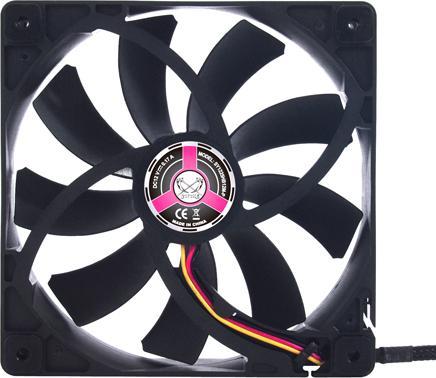

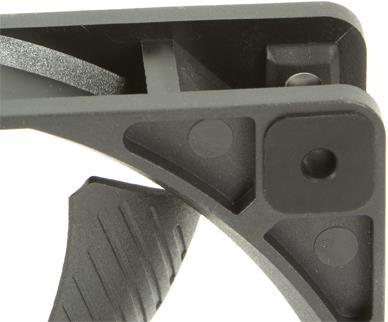

The new Scythe GlideStream 120 PWM series combines the proven design concept of "small hub & large rotor blades" with significant new features: Blades with grooves reduce air resistance even further, and mounting holes equipped with rubber inserts absorb potential vibrations from the operating fan. The series is available in nine different speeds, including two PWM models (1300 RPM & 1900 RPM), offering versatile application possibilities.
PWM Function
The PWM model (Pulse Width Modulation) of the new GlideStream 120 series can be automatically controlled using a PWM-capable motherboard. This feature allows for more flexible regulation of fan speed and provides the user with greater convenience. With the included adapter, the fan can also be used without PWM functionality.
Technical Specifications:
Dimensions: 120 x 120 x 25 mm
Color: Black
Voltage: 12V
Speed: 0 + 300 RPM ～ 1300 RPM (+/- 10%)
Noise Level: 0 – 26.1 dBA
Airflow: 0 – 73.39 CFM, 0 – 124.686 m³/h
Bearing: Sleeve bearing
Connection: 3 Pin Molex connector
Lifespan: 30,000 h
Included in Delivery:
1x Scythe Glide Stream 120 SY1225HB12M-P PWM (120x120x25mm)
1x 4-pin Molex Adapter
4x Mounting Screws.
Fan dimension | 120 mm |
Items per sales unit | 1 x |
power connector | 3-pin, 4-pin Molex, 4-pin PWM |
input voltage | 12 V |
Airflow | 124.69 m³/h |
Max. noise level | 26.10 dB |
LED colour | without LED |
Item number | 2451391 |
Manufacturer | Scythe |
Category | PC fans |
Manufacturer no. | SY1225HB12M-P |
Release date | 30.1.2014 |
Colour | Black |
Exact colour description | Black |
Fan dimension | 120 mm |
PC fan type | PWM fan |
Fan type | Standard |
Max. Speed | 1900 RPM |
Max. noise level | 26.10 dB |
Airflow | 124.69 m³/h |
LED colour | without LED |
power connector | 3-pin, 4-pin Molex, 4-pin PWM |
input voltage | 12 V |
Items per sales unit | 1 x |
Scope of delivery | 3-pin adapter, 4-pin adapter, Screws |
CO₂-Emission | |
Climate contribution |
Length | 120 mm |
Width | 120 mm |
Height | 25 mm |
Weight | 115 g |
