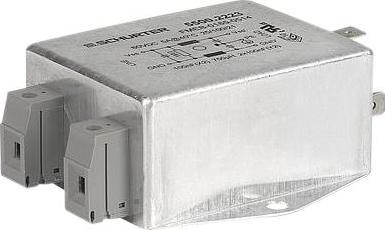

Schurter Mains filter, 5A, 80VDC, terminal block / quick connection

The Schurter network filter is a highly advanced product specifically designed for use in DC circuits. With a rated voltage of 80 VDC and a rated current of 5 A, this filter provides a reliable solution for reducing electromagnetic interference (EMI). The filter type is classified as a DC EMI filter and ensures effective filtering to enhance the performance and stability of electronic devices. The network filter is designed for a wide operating temperature range of -25 °C to 100 °C, making it suitable for various environments. Its compact design, with dimensions of 71 mm in width, 32 mm in height, and 66 mm in length, allows for easy integration into existing systems. Connection is made via a terminal block with quick connection, facilitating installation and maintenance.

• Inductance of 750 µH for effective filtering
• Operating temperature range of -25 °C to 100 °C
• Resistance of 1 MΩ to ensure safety
• Flammability class UL 94 V-0 for increased fire safety
• Easy installation via terminal block quick connection.
