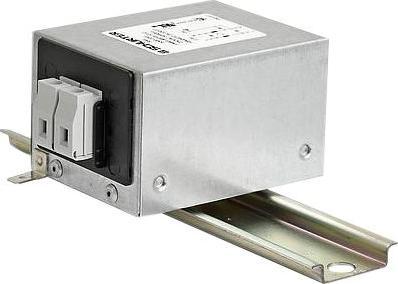

Schurter FMBB DIN RAIL 3A 3-Phase Line Filter

Rated current max. = 3A
Operating voltage max. = 250 V ac
Mounting type = DIN rail
Connection type = Screw
Series = FMAC RAIL
Operating frequency = 50 → 60Hz
Length = 102mm
Depth = 61mm
Capacity = 1.5 nF, 100 nF, 680 nF
Dimensions = 102 x 61 x 48mm
Leakage current = 0.25 mA
Operating temperature max = +100°C
Resistance = 1MΩ

AC filters FMBB-rail series for DIN rail mounting. Two-stage single-phase filters for broadband attenuation for DIN rail mounting in a metal housing Designed for industrial applications such as switchgear and control cabinets Particularly effective against symmetrical and asymmetrical interference in the frequency range from 10 kHz to 30 MHz Suitable for devices according to IEC/EN 60950.
