Schneider XXS18B1AM12
Product details

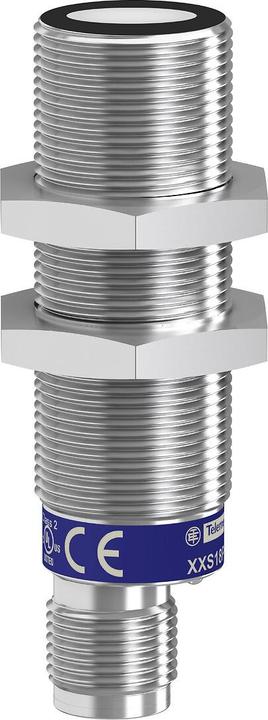

Schneider Electric Ultrasonic Sensor XXS18B1AM12
Manufacturer: Schneider Electric
Designation: Ultrasonic Sensor M18 4-20mA SN=1m
Type: XXS18B1AM12
Analog Output Configuration: 4 mA ... 20 mA
Electrical Connection Type: M12 Connector
Dead Zone: 105 mm
Sensor Length: 45 mm
Sensor Diameter: 18 mm
Adjustable Distance: 1000 mm
Adjustment Method: Other
Measuring Range Length: 1 mm
Protection Class (IP): IP67
Housing Design: Cylinder, Threaded
Ambient Temperature: -25..70 °C
Supply Voltage: 12..24 V
Relative Repeatability: 0.1 %
Voltage Type: DC
Synchronization Possible: Yes
Material of the Sensor's Active Area: Other
Housing Material: Brass
Schneider Electric Ultrasonic Sensor XXS18B1AM12: additional details Ultrasonic Sensor M18. With 4-20mA analog output. Switching distance SN 1m. EAN: 0785901059882.
Diameter | 18 mm |
Item number | 33110919 |
Manufacturer | Schneider |
Category | Buttons + Switches |
Manufacturer no. | XXS18B1AM12 |
Release date | 16.5.2023 |
Material group | Metal |
Material | Brass |
Nominal voltage | 24 V |
Protection type (IP code) | IP67 |
Country of origin | USA |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | Ultrasonic sensor M18 4-20mA SN=1m |
Length | 45 mm |
Diameter | 18 mm |
