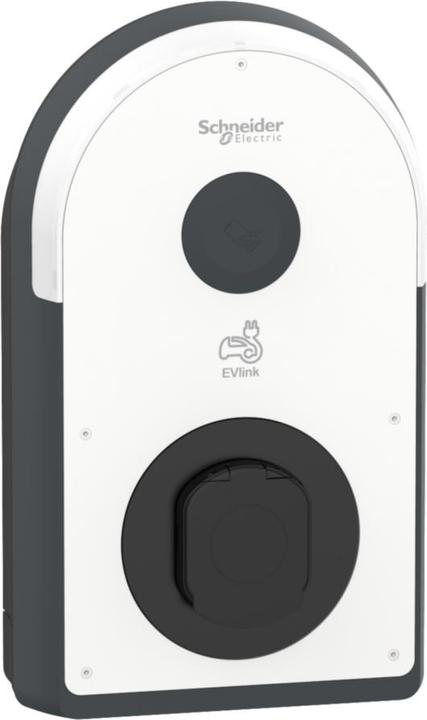

Schneider Wallbox EVLINK PRO AC 22kW, T2S socket, MID, NFC/RFID Reader

EVlink Pro AC Wallbox with Type 2 socket and shutters. Designed for use in semi-public garages or parking lots, suitable for indoor or outdoor wall installation, on the EVlink pole, or in the metal kit. Mode 3 charging according to IEC 61851-1, 3-phase with a maximum charging power of 22 kW, Type 2 socket. Equipped with an integrated 3-phase MID meter and a Type B-EV residual current device as a separate component included in the delivery. Digital inputs: 1 for temporary power limitation, 1 for delayed/suspended charging, 1 for EV presence detection. Access control via NFC/RFID reader. NFC reader 13.56 MHz compatible with Type 1, 2, 4, and 5 badges; RFID reader complies with ISO/IEC 14443 A & B and ISO/IEC 15693 protocols, compatible with Mifare Ultralight, Mifare Classic, Mifare Plus. User information and status indication via a clearly visible LED arc, commissioning of the wallbox via eSetup app via Bluetooth. Communication standards: Bluetooth, Ethernet 2 ports (1 for Daisy Chain), Modbus serial, Modbus TCP, OCPP 1.6J for connection to a backend as well as the load management system EcoStruxure EV Charging Expert. Optional accessories: Wi-Fi module, modem module, ISO 15118 module, pluggable on the charging controller. Color of the charging station: Housing: Dark gray RAL 7016 and Black RAL 9005, front cover: White RAL 9003. Dimensions WxHxD: 317x529x153 mm, weight: 7.5 kg, material: UV-treated polycarbonate. Impact resistance IK10, protection class IP55, operating temperature -30 to 50 °C, storage temperature -40 to 80 °C, maximum operating altitude 2000 m without derating, relative humidity 5 to 95%, self-consumption <10 W. Earthing system: TT, TN(S) or TN(C)(S), IT compatible with additional isolation transformer in the power supply. Norms and standards: CE, E.V. Ready, IEC/EN 61851-1 Ed 3.0, IEC/EN 62196-1 Ed 2.0, IEC/EN 62196-2 Ed 1.0, EN 61000-6-2: 2019, EN 61000-6-3: 2007 + A1: 2011, IEC 60884-1 and NF-C 61314.
