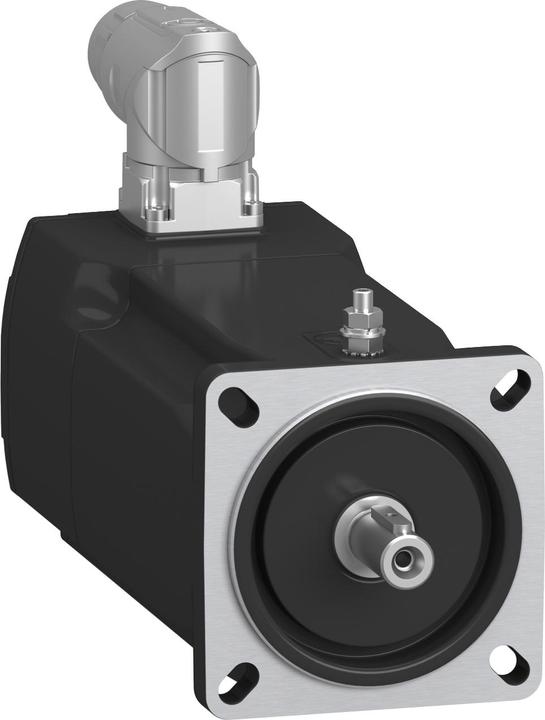

Schneider SH30701P1AA4000

The SH30701P1AA4000 is a highly advanced RC servo from Schneider, specifically designed for use in the Lexium 52 and Lexium 62 systems. This synchronous motor features a low inertia, making it particularly efficient and responsive. With a size of 70 mm and a rated power of up to 1550 W, this servomotor delivers impressive performance. The torque is 3.1 Nm in continuous operation, reaching peak values of up to 11.3 Nm. The speed ranges from 7200 RPM in nominal operation to a maximum of 8000 RPM. The motor is equipped with an IP54 shaft end and an IP65 housing, protecting it from dust and water. Additionally, it has an integrated single-turn encoder with a resolution of 128x1024, providing precise position feedback. The holding brake ensures extra safety and stability during operation.

• Low inertia for high efficiency
• Integrated single-turn encoder with 128x1024 resolution
• IP65 housing for optimal protection against environmental influences
• Torque of 3.1 Nm in continuous operation, up to 11.3 Nm peak
• Speed range from 7200 RPM to 8000 RPM.
