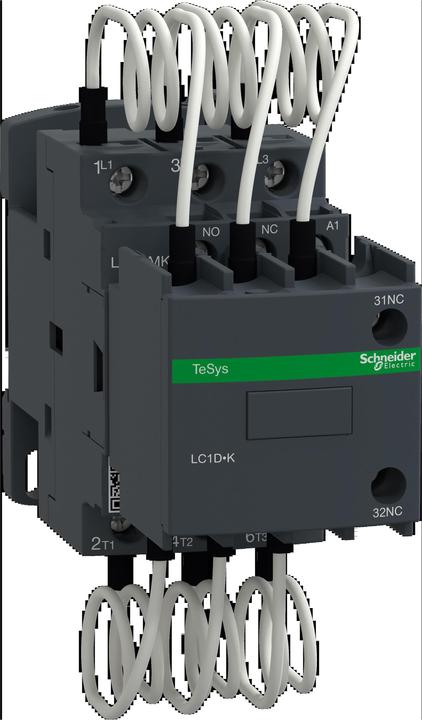

Schneider LC1DMKP7

Schneider Electric Tesys LC1D.K Contactor LC1DMKP7 Manufacturer :Schneider Electric Designation :Tesys LC1D.K Contactor Type :LC1DMKP7 Rated control supply voltage Us at AC 50 Hz :230 V Rated control supply voltage Us at AC 60 Hz :230 V Voltage type for actuation :AC Number of auxiliary contacts as NO :1 Number of auxiliary contacts as NC :2 Connection type main circuit :Screw connection Number of NO contacts as main contacts :3 Rated reactive power at 400 V, 50 Hz :25 kvar Schneider Electric Tesys LC1D.K Contactor LC1DMKP7: further details TeSys D contactor, 3-pole (3NO), for switching 3-phase capacitor banks up to 25kVAR@400V 50Hz (42kVAR@690V). It has a 230V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early-make contacts and pre-wired damping resistors for current limiting. For operating rates up to 240 cycles/hour and environments up to 60°C, it offers high reliability and durability. Compact (45mm width), DIN rail or screw mountable. Certified to IEC 60947 and compliant with shunt capacitor standard IEC 60831, Green Premium product (RoHS/REACh). , EAN: 3606480401855.
