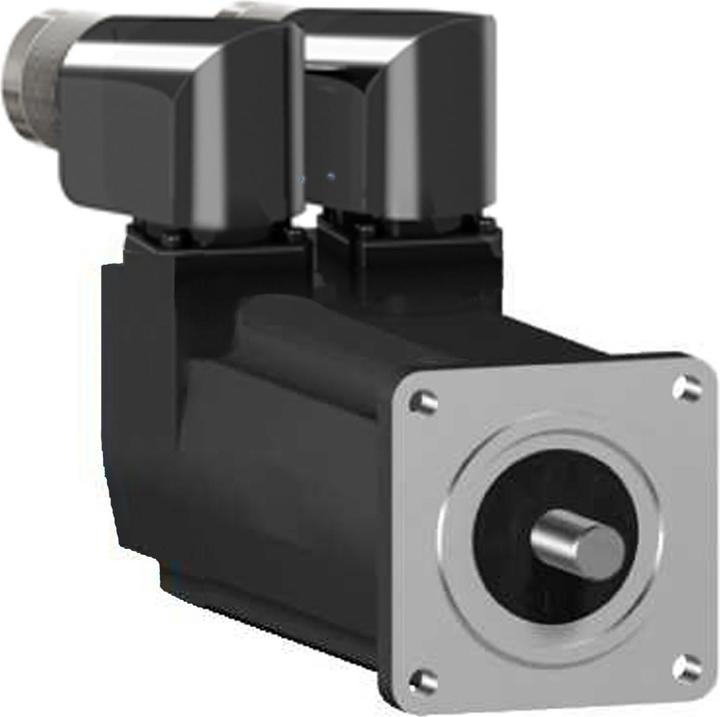

Schneider Electric Servom. SH3 055 0,8Nm,k. spanner,multi. brake,90°connection IP54/IP65,9k RPM

Lexium SH3 servo motors are the perfect answer to high demands for dynamics and precision. With five flange sizes and different lengths, they provide a solution for most applications. SH3 servo motors cover a wide range of standstill torque from 0.5 to 33.4 Nm for speeds up to 8000 min-1. Thanks to the new winding technology (pole-shoe design), a more compact design with higher power density can be achieved in comparison to conventional servo motors. The Lexium SH3 servo motors have Recognized certification and comply with UL1004 standards as well as European directives. They are available in the following variants: 5 flange sizes: 55, 70, 100, 140, and 205 mm. 2 protection classes at the shaft end: IP 54 or IP 65 according to standard IEC/EN 60529. The protection class of the housing is IP 65 (IP 67 with conformity kit as an option). Available with or without holding brake, straight or angled connector for power and encoder connection. Integrated single-turn or multi-turn SinCos Hiperface encoder. Smooth shaft end or shaft end with keyway.
