Schneider Electric SELECTOR SWITCH 230VAC 2AMP XB5 +OPTIONS

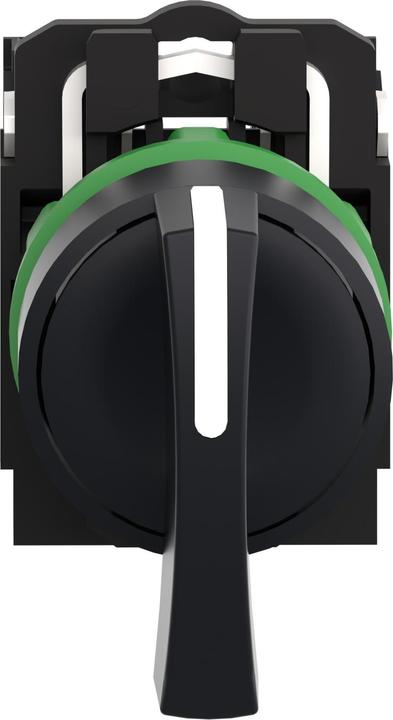

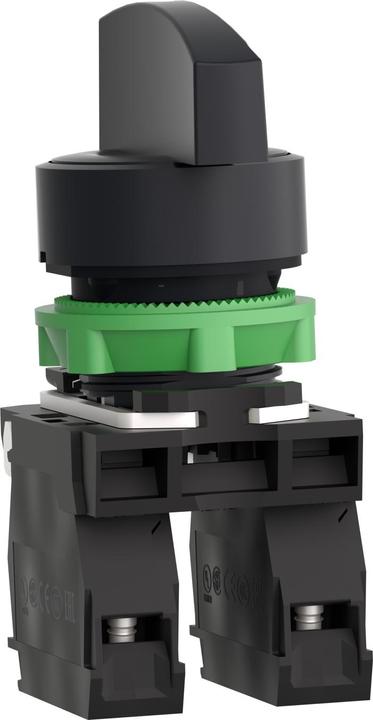

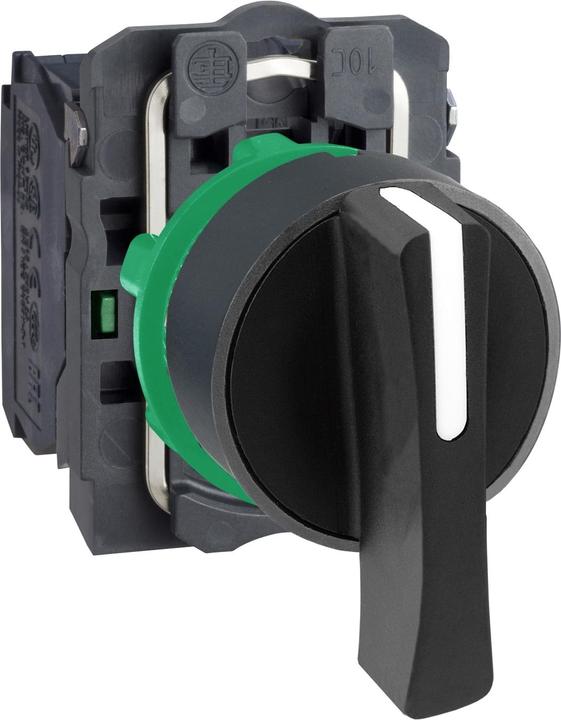

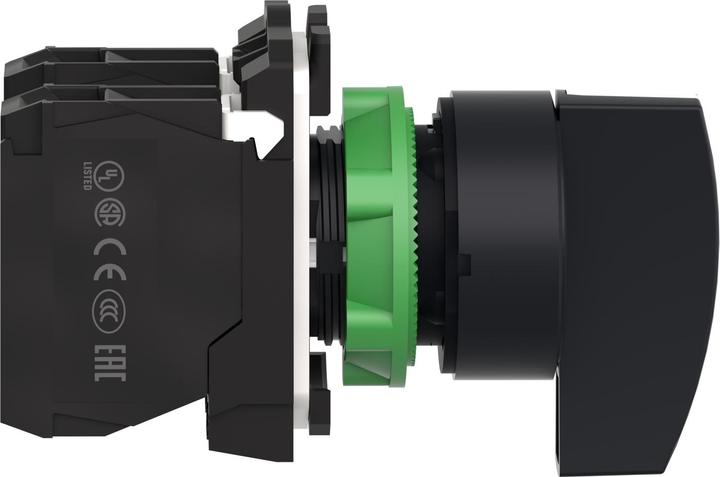

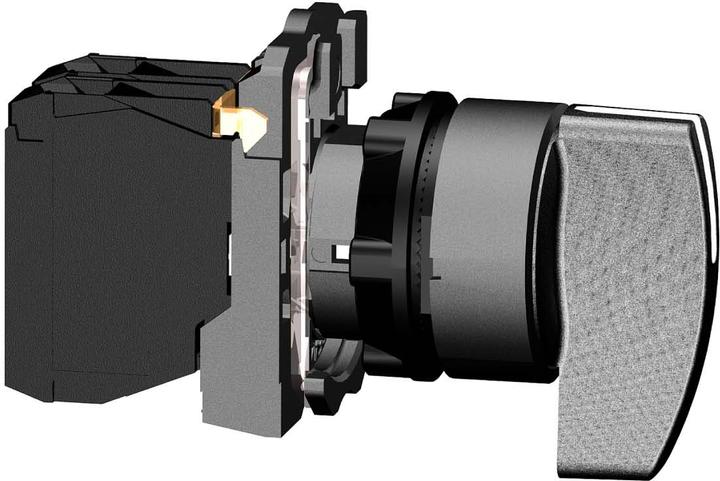

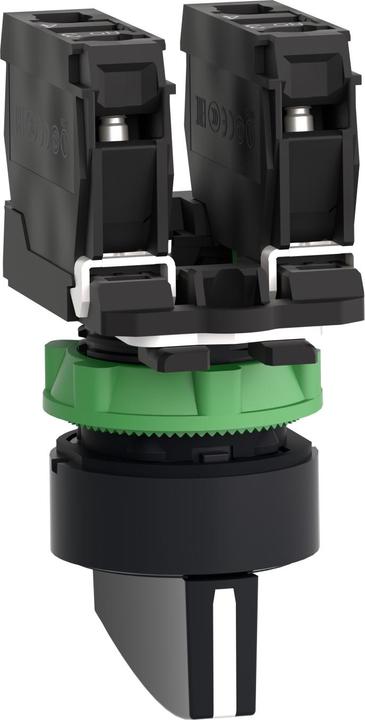

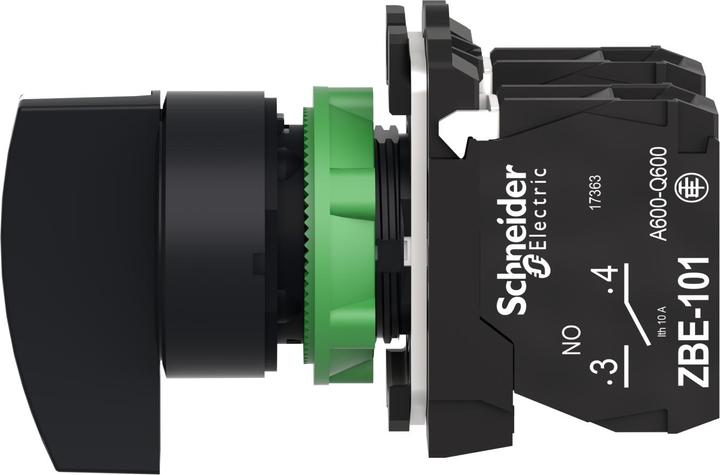

Schneider Electric Selector Switch XB5AJ33

Manufacturer: Schneider Electric
Designation: Selector Switch 3-Position, 2S
Type: XB5AJ33
Number of Switching Positions: 3
Actuator Type: Long Rotary Handle
Suitable for Lighting: No
With Light Source: No
Button Color: Black
Hole Diameter: 22.5 mm
Switch Function Latching: Yes
Momentary: No
Protection Class (IP): IP67/IP69K
Protection Class (NEMA): 13

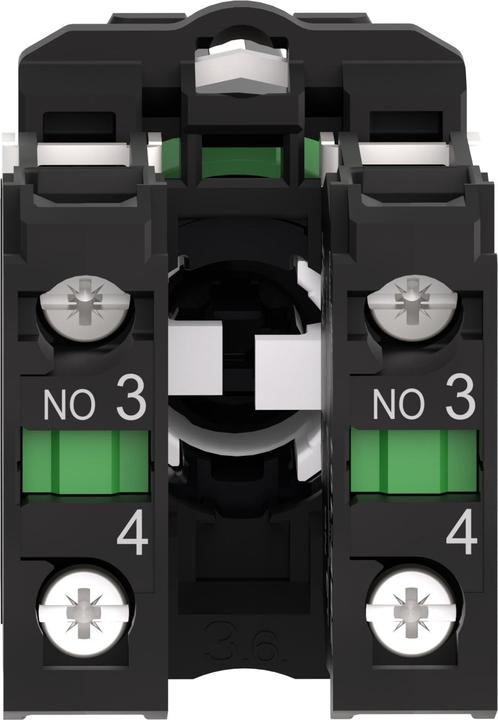

Number of Contacts as Normally Open: 2
Electrical Connection Type: Screw Terminal
With Front Ring: Yes
Material of Front Ring: Plastic
Front Ring Color: Black

Schneider Electric Selector Switch XB5AJ33: Additional Details
The Harmony XB5 series made of plastic offers a wide range of 22mm complete devices such as push buttons, indicator lights, and selector switches, as well as emergency stop switches. Additionally, due to the modular design of the devices, all components can also be purchased as individual elements, and they can optionally be adapted for 30mm mounting dimensions. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. Installed in a 22mm hole, the device is connected via screw terminals on the back of the product. This selector switch features 2 normally open contacts. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information about material contents, environmental impacts, and circular economy, which support your sustainability goals.
