Schneider Electric SE A9D37632 RCD circuit-breaker IDPN H Vigi 32A C 30Ma A

Ratings
BrandMore from Schneider Electric
Delivered between Tue, 16.6. and Tue, 30.6.
free shipping

Rated current2

Product details

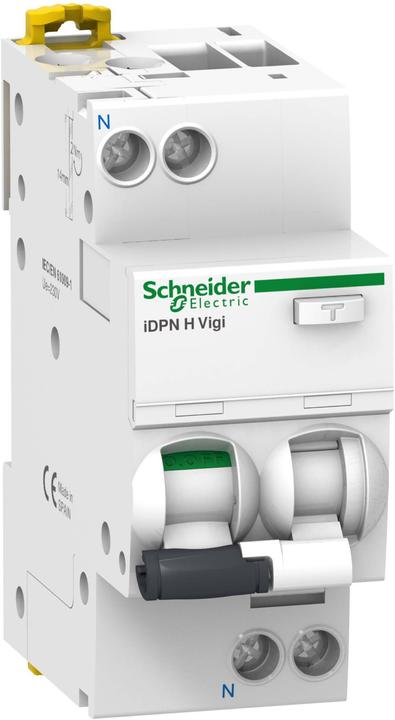

The SE A9D37632 FI/LS switch IDPN H Vigi is a highly advanced residual current circuit breaker that combines overcurrent protection and residual current protection in a compact device. With a rated current of 32A and a ground fault sensitivity of 30mA, this switch provides comprehensive protection for final circuits. It is designed for use in 230V AC systems and meets the strict standards of IEC/EN 61009 and IEC/EN 60947-2. The thermomagnetic tripping unit ensures reliable and rapid response to overcurrents and fault currents. The mechanically isolated indicator allows for a clear view of the device's status, while the test button enables regular functionality checks. The switch is designed for tool-free installation and can be expanded with optional auxiliary modules to integrate additional protection features. These characteristics make the SE A9D37632 an ideal choice for safe electrical installations.

  • Mechanically isolated indicator for fault tripping
  • Thermomagnetic tripping unit for reliable protection
  • Tool-free installation for easy setup
  • Expandable with optional auxiliary modules
  • VDE certified and meets international standards.

Key specifications

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
Mounting type
Finery
number of poles
2
Length
73 mm
Width
36 mm

General information

Item number
32099767
Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer no.
A9D37632
Release date
16.11.2022

Colour

Colour
White
Exact colour description
RAL9003

Circuit Breaker Features

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
Mounting type
Finery
Mounting type
Engagement
number of poles
2
Tripping characteristic
C
Rated current
32 A
Rated current
0.03 A
Rated voltage
230 V
voltage type
AC
Rated insulation voltage Ui
400 V
Residual current (rated differential current)
0.03 A
Protection type (IP code)
IP20

Origin

Country of origin
France, Spain

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

CO₂ emissions
18.08 kg
Climate contribution
CHF 0.43

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
73 mm
Width
36 mm
Weight
125 g
